Husky Unify - Small Hydraulic Actuator Components; Item Component Description Quantity

Table 3-1: Large Hydraulic Actuator Components (Continued)
Item Component Description Quantity
9 Wear Ring Cylinder 1
10 Rod Step Seal 1
11 Scraper Seal 1
12 O-Ring 1
13 Cylinder 1
14 Spring Pin S/A 1
15 Stop Block 1
16 SCHS M4 X 10 mm (0.40 in) 2
3.12.2 Small Hydraulic Actuator Components
10
11
8
16
9
12
15
7
4
6
3
1
13
14
2
5

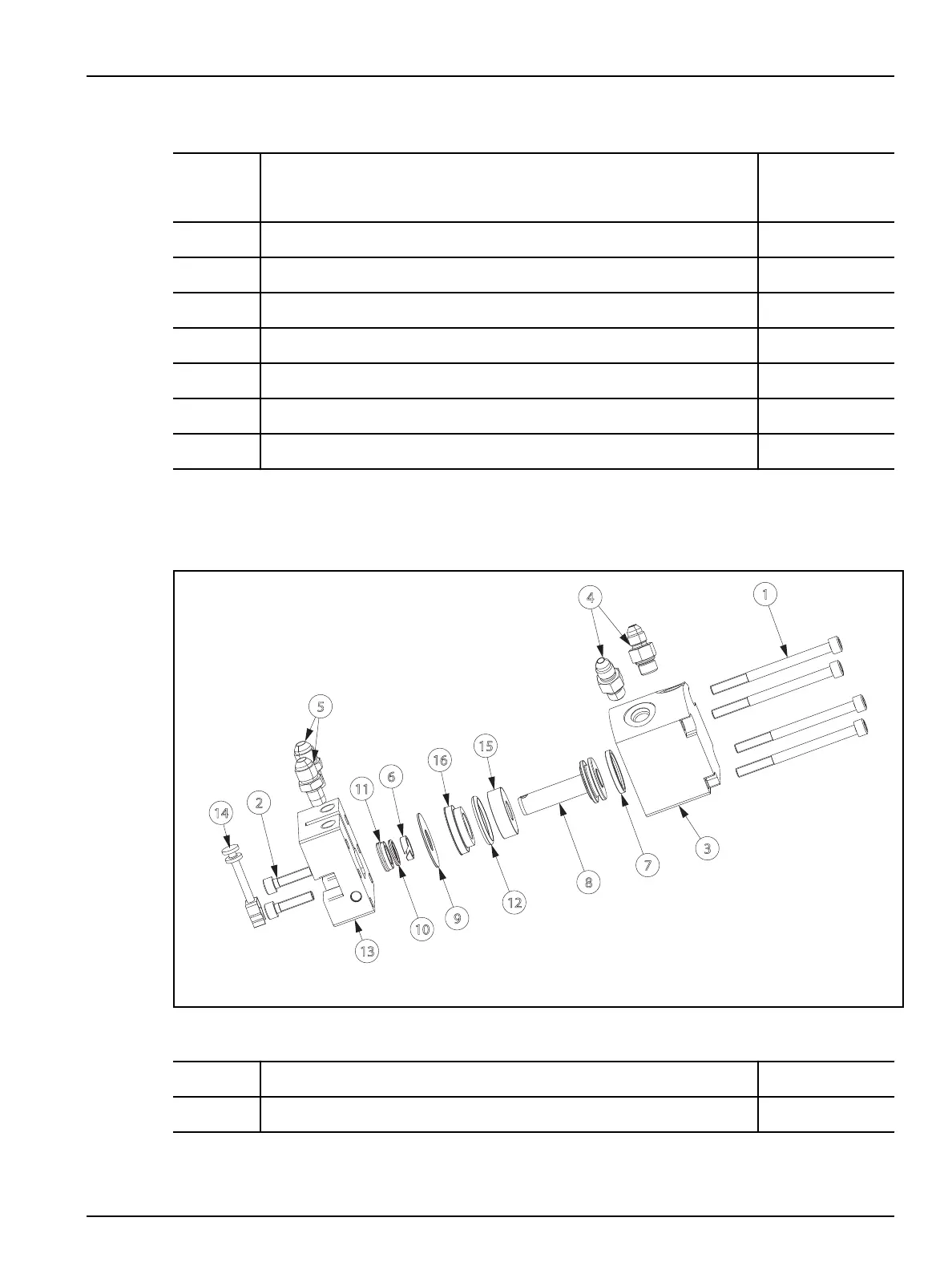

Figure 3-2: Small Hydraulic Actuator Components
Table 3-2: Small Hydraulic Actuator Components
Item Component Description Quantity
1 SHCS M6 x 80 mm (3.15 in) 4
Hot Runner Installation Manual v 2.2 — March 2021 Specications
Hydraulic and Pneumatic Actuator Component Specications 37
