Husky Unify - Large and Small Pneumatic Actuator with Thermal Regulator Components

Table 3-3: Large and Small Pneumatic Actuator Components (Continued)
Item Component Description Actuator Size Quantity
9 GLYD Ring 1
10 O Ring 1
11 Cylinder Small 1
Large 1
12 Spring Pin S/A 1
13 Stop Block Small 1
Large 1
14 SHCS M4 x 10 mm (0.39 in) 2
3.12.4 Large and Small Pneumatic Actuator with Thermal Regulator Components
4
1
2
3
6
8 7
5
9
12
11
10
13
14

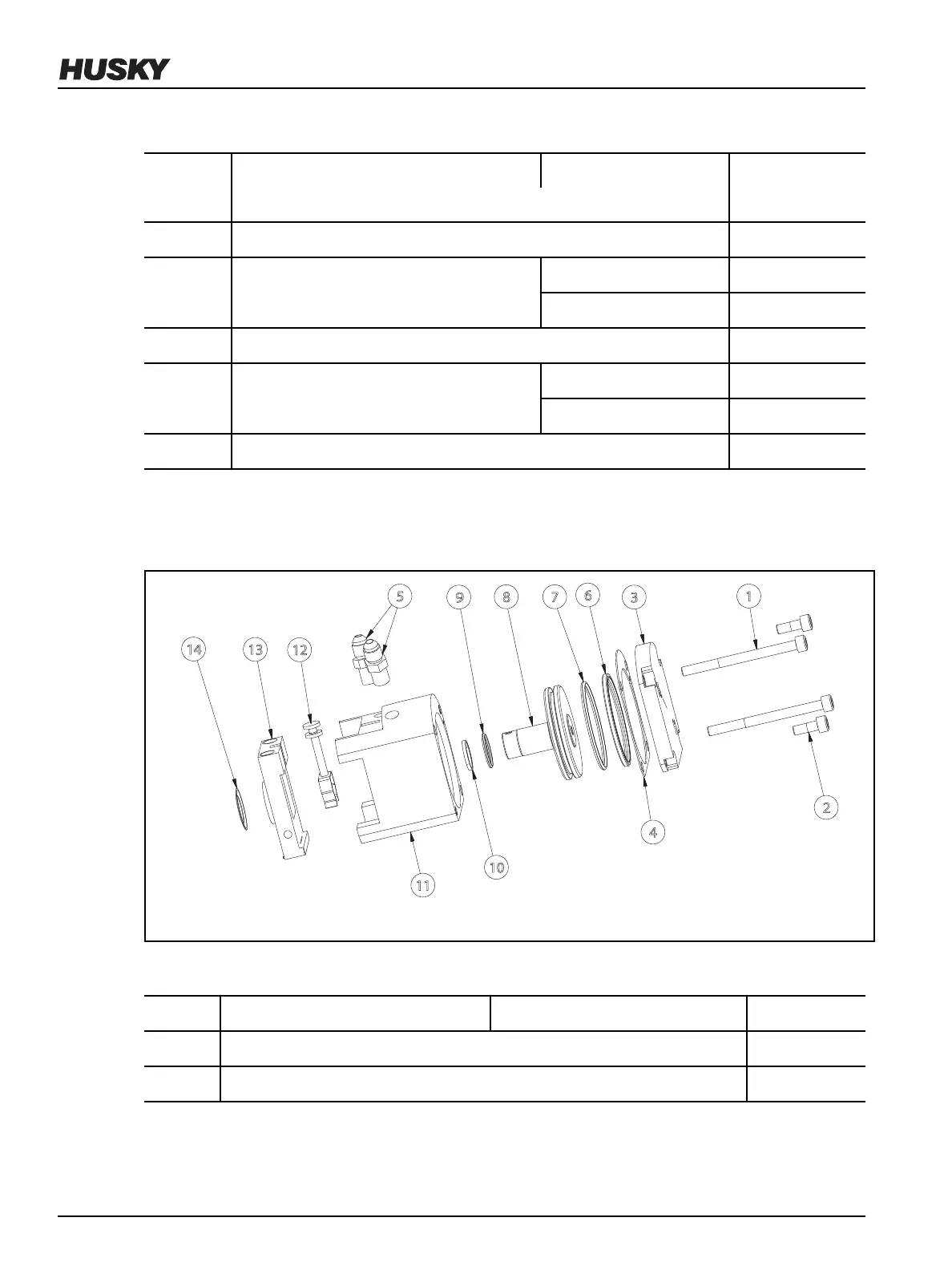

Figure 3-4: Large and Small Pneumatic Actuator with Thermal Regulator
Table 3-4: Large and Small Pneumatic Actuator with Thermal Regulator Components
Item Component Description Actuator Size Quantity
1 SHCS M6 x 75 mm (2.95 in) 2
2 SHCS M6 x 16 mm (0.63 in) 6
v 2.2 — March 2021 Unify Manifold System
40 Large and Small Pneumatic Actuator with Thermal Regulator Components
