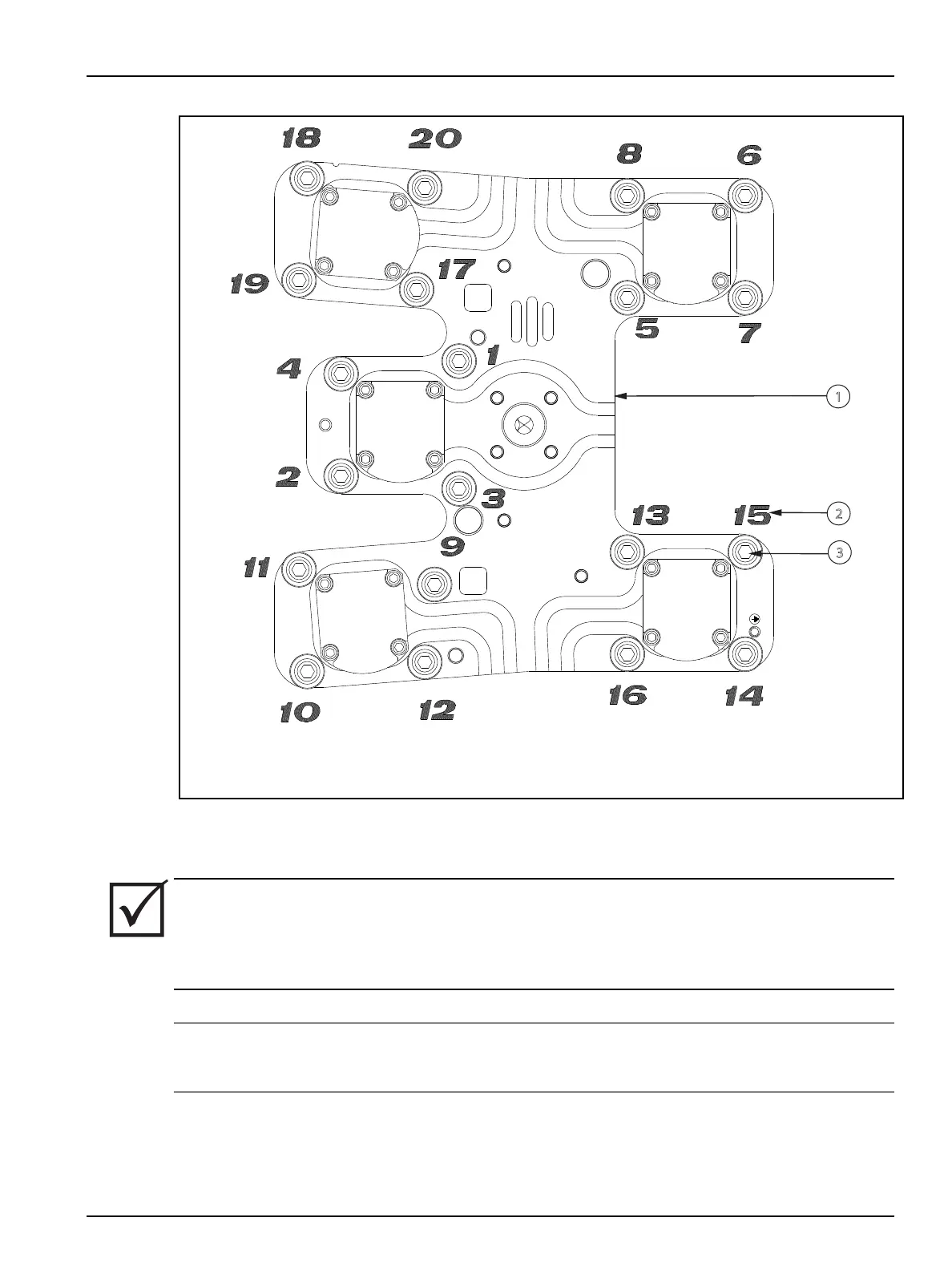

Figure 4-5: Torque Cross-Pattern
1. Manifold 2. Torque Sequence Number 3. Drop Screw
8. If desired, add hold down screws (M6 or ¼ - 20) to each mounting tab on the unify frame and
torque to the specied values.
IMPORTANT!
For cross Manifold design, make sure that the alignment pull dowels that keep the cross and main
manifolds aligned during assembly, shipping, and installation are removed. Assembly dowels
should be re-installed if manifolds are removed and serviced.
NOTE:
Hold down screws are optional. Husky does not provide the hold down screws.
Hot Runner Installation Manual v 2.2 — March 2021 Installation and Removal
Installing and Removing the Manifold Assembly 51
