4. Slide the nozzle heater over the nozzle housing far enough to show the retaining clip groove
on the nozzle tip.
5. Slide the thermocouple and retaining ring over the nozzle tip, onto the nozzle heater, far
enough to show the retaining clip groove on the nozzle tip.
6. Orient the thermocouple wires on the same side as the nozzle heater wires.
7. While holding the nozzle heater and thermocouple and retaining ring rmly against the
wave springs, install the retaining clip into the groove in the nozzle housing.
8. Install the nozzle retainer but do not tighten it.
9. Route the nozzle heater and thermocouple wires through the wire passages on the nozzle
retainer.

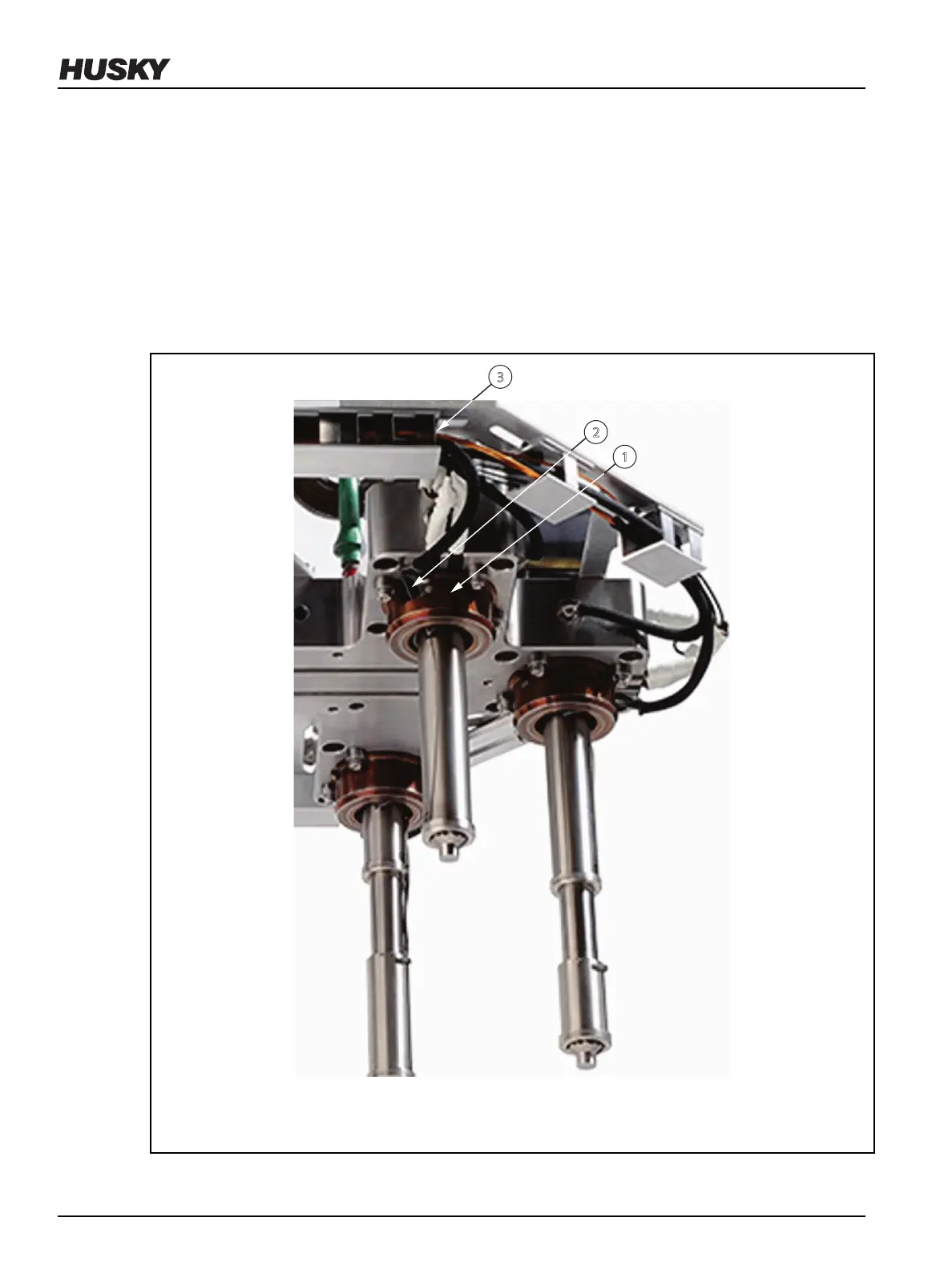

Figure 6-36: Routing the wires
1. Nozzle Retainer 2. Nozzle Retainer Wire Passage 3. Wire Channel
v 2.2 — March 2021 Unify Manifold System
94 Removing and Installing Nozzle Heaters
