Husqvarna AUTOMOWER 310 Technical Manual

English - 60

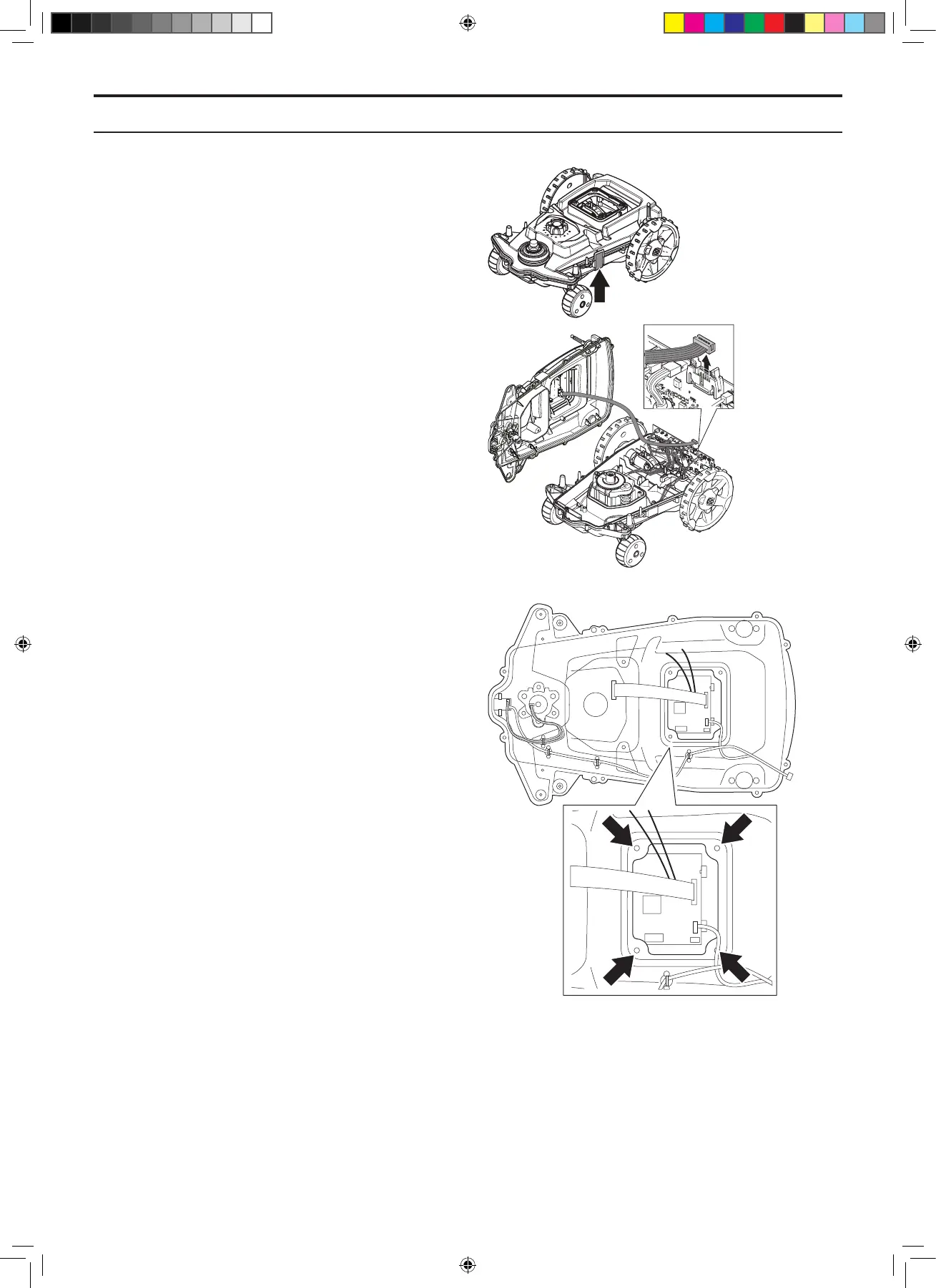

4. Remove the guarantee seal at the point
of separation between the chassis halves on
the right-hand side.Carefully lift the back edge
of the upper section of the chassis.
5. Disconnect the HMI cable from the main
circuit board and remove the upper section
of the chassis.
5.2.3 Disassembling the display cover
The display cover is mounted on the chassis with four
screws. To enable the parts to be fully separated, all
cabling between the HMI circuit board and the upper
section of the chassis must be disassembled from the
HMI circuit board.
1. Disassemble the body. See 5.2.1
Disassembling the body on page 59.
2. Disassemble the chassis. See 5.2.2
Disassembling the chassis on page 59.
3. For GARDENA models with Smartsystem, the
Smartsystem board must be removed. See
5.9 Replacing the GARDENA Smartsystem
board on page 66.
4. Unscrew the four screws (Torx 20) from the
underside of the upper chassis section.
5. Carefully lift the display cover so as not to
damage the cables connecting the chassis
and display cover.
6. Disassemble the HMI cable from the HMI
circuit board.
5. REPAIR INSTRUCTIONS
TH_1158203_310_315_GARDENA_US.indd 60 2016-05-11 10:16:24

Husqvarna AUTOMOWER 310 Specifications

General

Cutting Width	22 cm
Cutting Height Min	20 mm
Cutting Height Max	50 mm
Battery Type	Li-ion
Typical Charging Time	60 min
Typical Mowing Time per Charge	70 min
Maximum Incline Within the Working Area	40%
Working Area Capacity	1000 m²
Battery Capacity	2.1 Ah
Weight	9.4 kg
Battery Voltage	18 V
Operating Time	70 min
Maximum Area	1000 m²
Weather Resistance	Yes
Smart Connectivity	No
Blade Type	Pivoting razor blades
