Chapter 2 Wiring
52

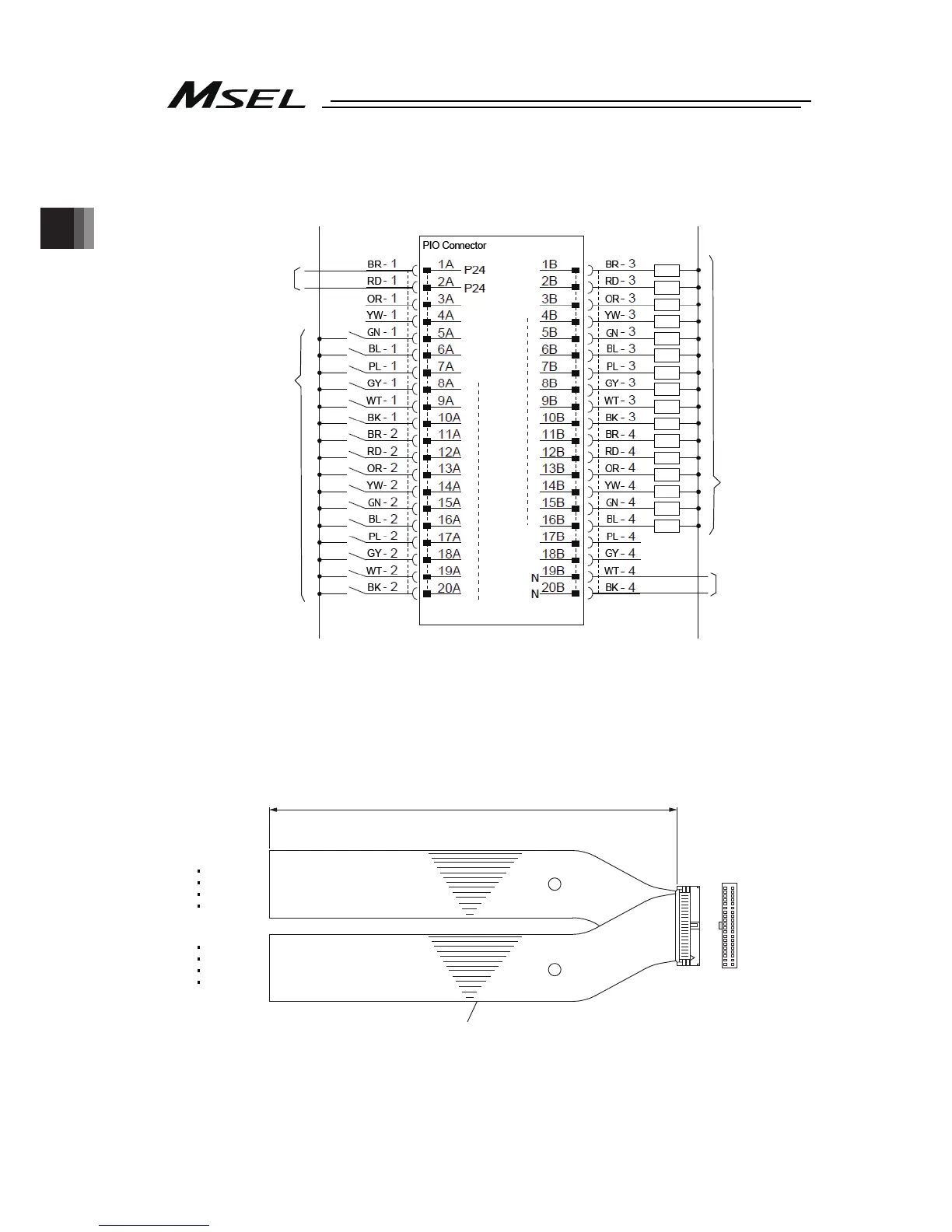

2) ExtensionI/O (I/O2)
24VDC (NPN Type)
0V (PNP Type)
0V
24VDC (PNP Type)
General-purpose
input
General-purpose
output
24VDC
0V (NPN Type)
048
049
050
348
349
350
Use the attached cable for the I/O connection.
Model : CB-PAC-PIO ( indicates the cable length L. Example. 020 = 2m)
Flat Cable (20-core)
×
2
BK-4 (20B)
BR-3 (1B)
BK-2 (20A)
BR-1 (1A)
20A 20B
1A 1B
Half Pitch MIL Socket
HIF6-40D-1.27R (Hirose Electric)
A
B
L
No treatment
conducted
No treatment
conducted
