IAI MSEL User Manual

Chapter 3 Operation
69

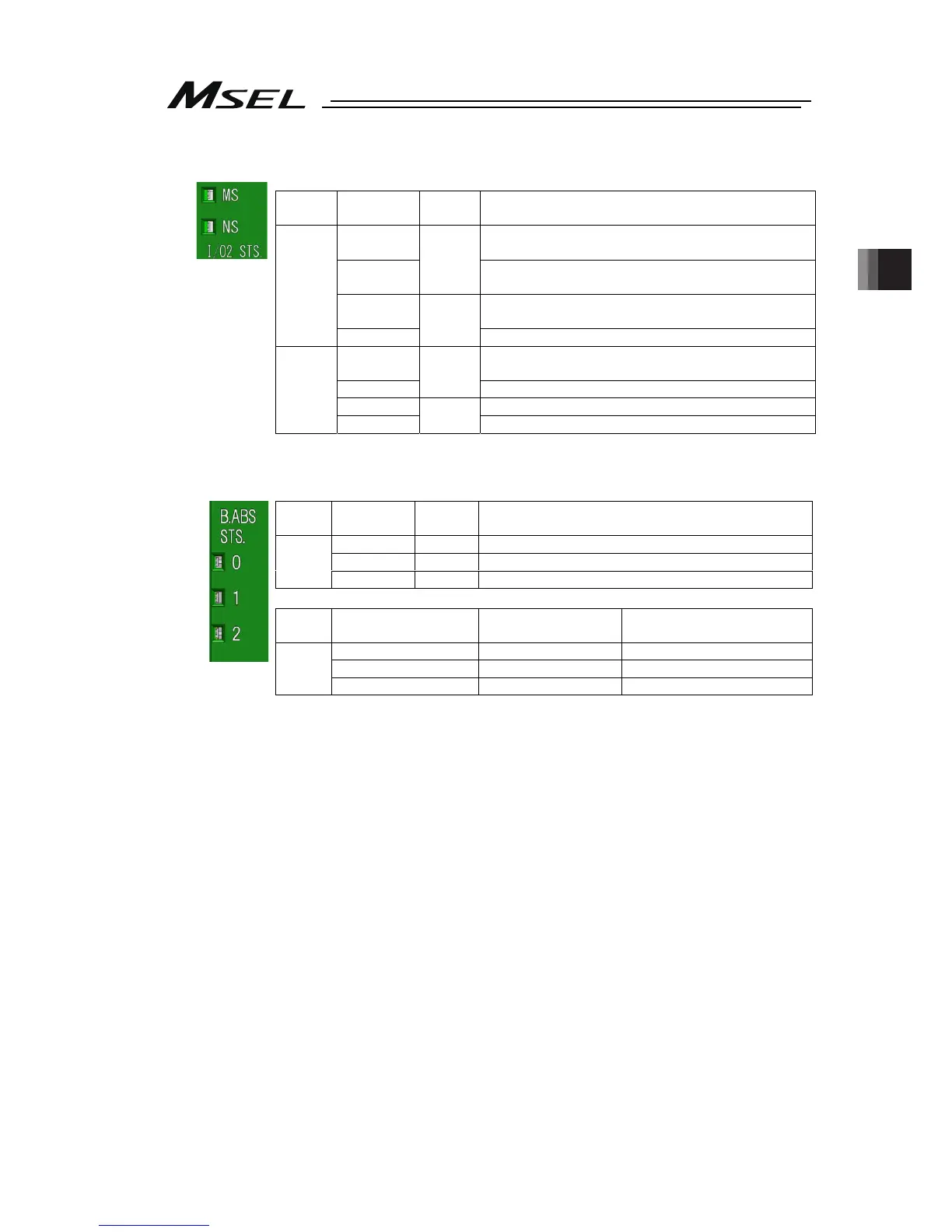

(5) EtherNet/IP Type Status LED
 : Illuminating  : OFF  : Flashing
Name
Lamp
condition
Color Description

In operation condition and under control of
scanner (master)

Green
Setting of construction information incomplete, or
scanner (master) in idling condition

Fatal malfunction (exception condition or critical
error)
MS

Orange
Light malfunction possible to recover

Online status
(Connection established on one or more)

Green
Online status (connection not being established)

Critical error such as IP address duplication
NS

Orange
Timeout in connection on one or more
(6) Simple Absolute Status LED Lamps (PC/PG/PCF/PGF type)
 : Illuminating  : OFF  : Flashing
Name
Lamp
condition
Color Description

Green Battery fully charged

Orange Battery in charge
0

Red Battery not connected
Name
Lamp Condition of 1
(Color)
Lamp Condition of 2
(Color)
Description
 (Green)  (Green) Absolute reset complete
 (Red)  (Green) Absolute reset incomplete
1, 2
-  (Red) Alarm
