IAI ROBO Cylinder RCS4- SA4C User Manual

4.6 How to replace components
4-28
4. Maintenance and Inspection

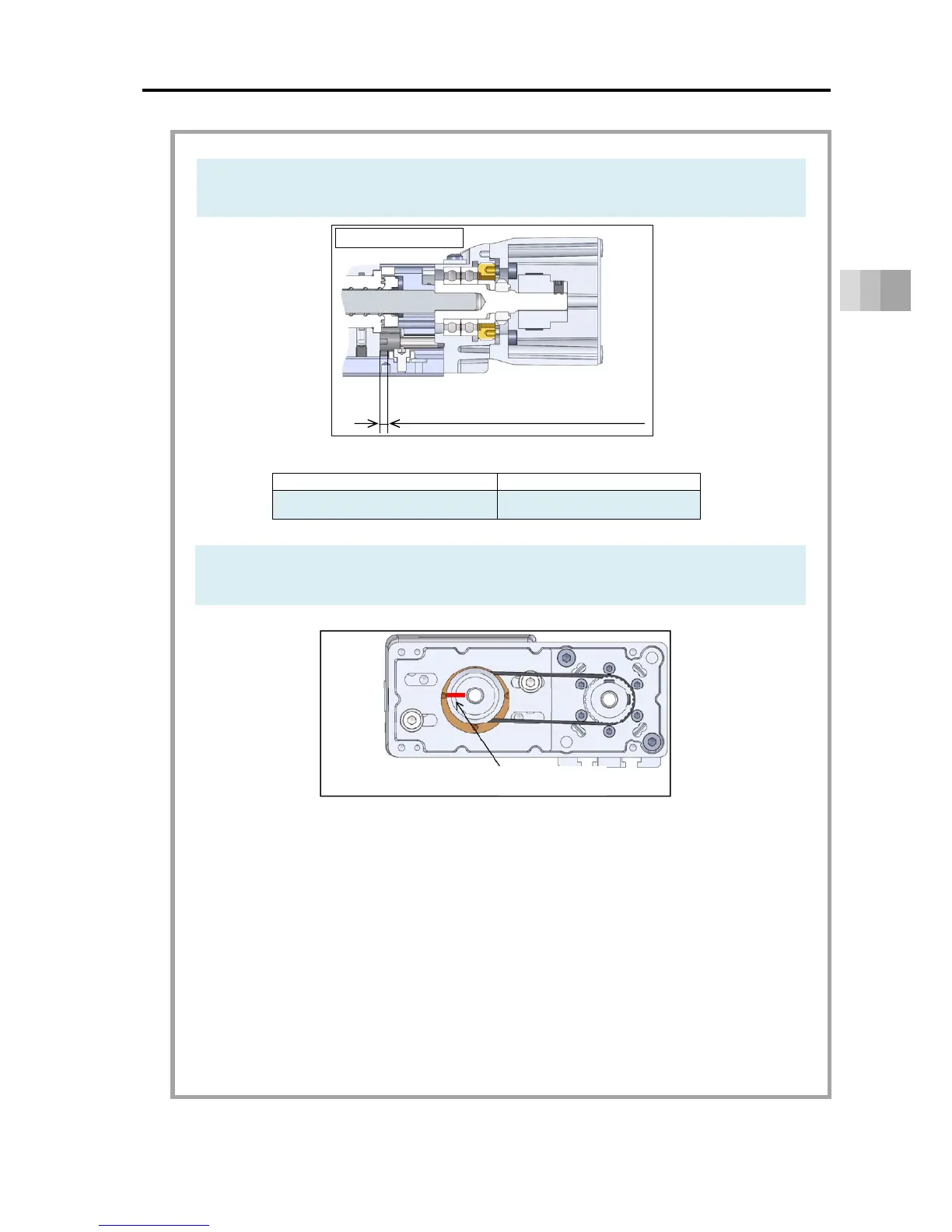

4) Attach the motor unit for replacement.
5) Keep the table at the distance shown in the table below from the mechanical end.
Slider Position
Model
Slider Position [mm]
SA4R, SA6R, SA7R and SA8R 2
6) With the origin mark marked on the motor end pulley facing outwards, hang the
belt on the pulleys.
Slider Position
(Distance between slider and mechanical end
when attaching motor unit)
Section: Main Unit Ass’y
Origin Mark
