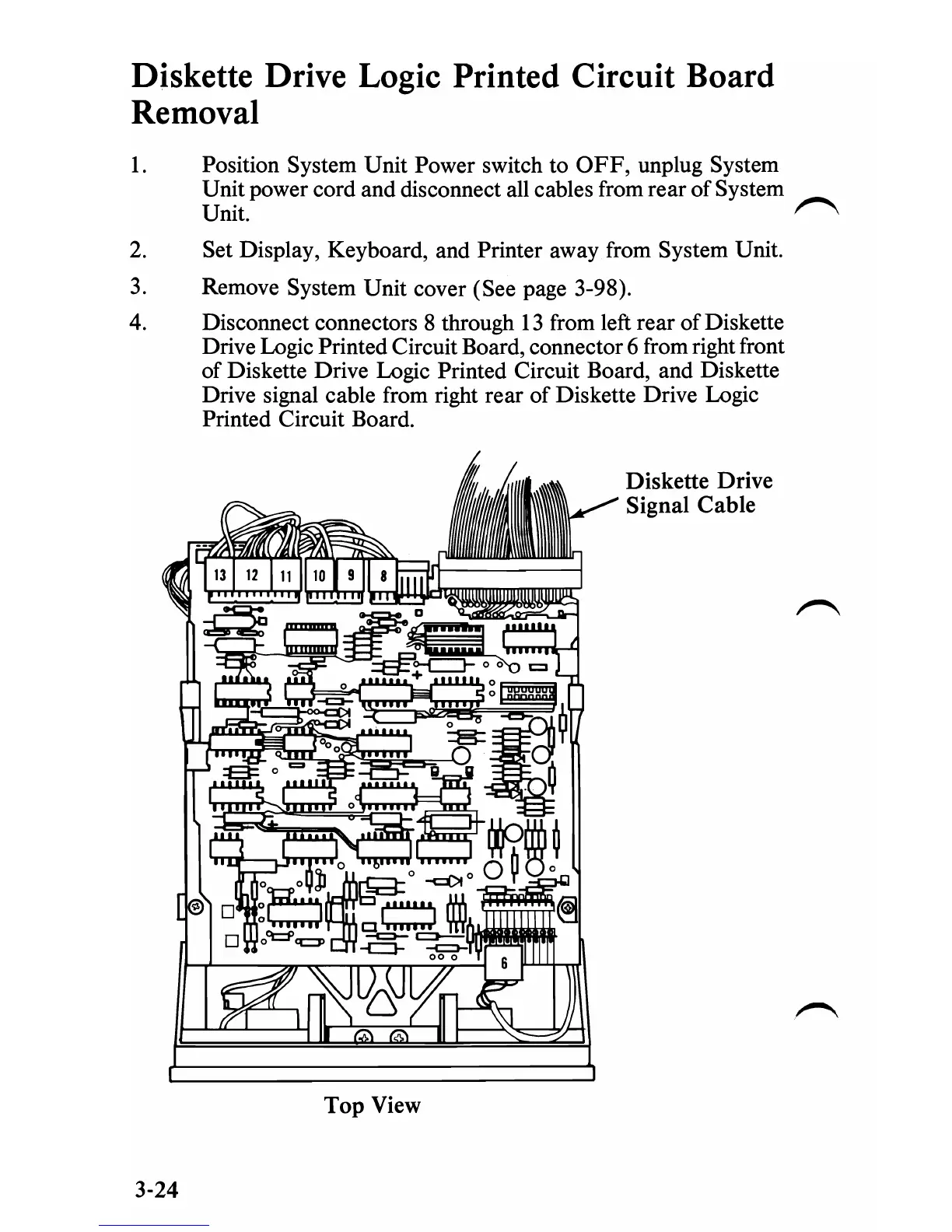

Diskette Drive Logic Printed Circuit Board
Removal
1.
Position System Unit Power switch to
OFF,
unplug System
Unit power cord and disconnect all cables from rear
of
System
Unit.
~
2. Set Display, Keyboard, and Printer away from System Unit.
3. Remove System Unit cover (See page 3-98).
4. Disconnect connectors 8 through
13
from left rear
of
Diskette
Drive Logic Printed Circuit Board, connector
6 from right front
of Diskette Drive Logic Printed Circuit Board, and Diskette
Drive signal cable from right rear
of
Diskette Drive Logic
Printed Circuit Board.
Diskette Drive
Signal Cable
Top View
3-24
