IBM 5150 Hardware Maintenance Manual

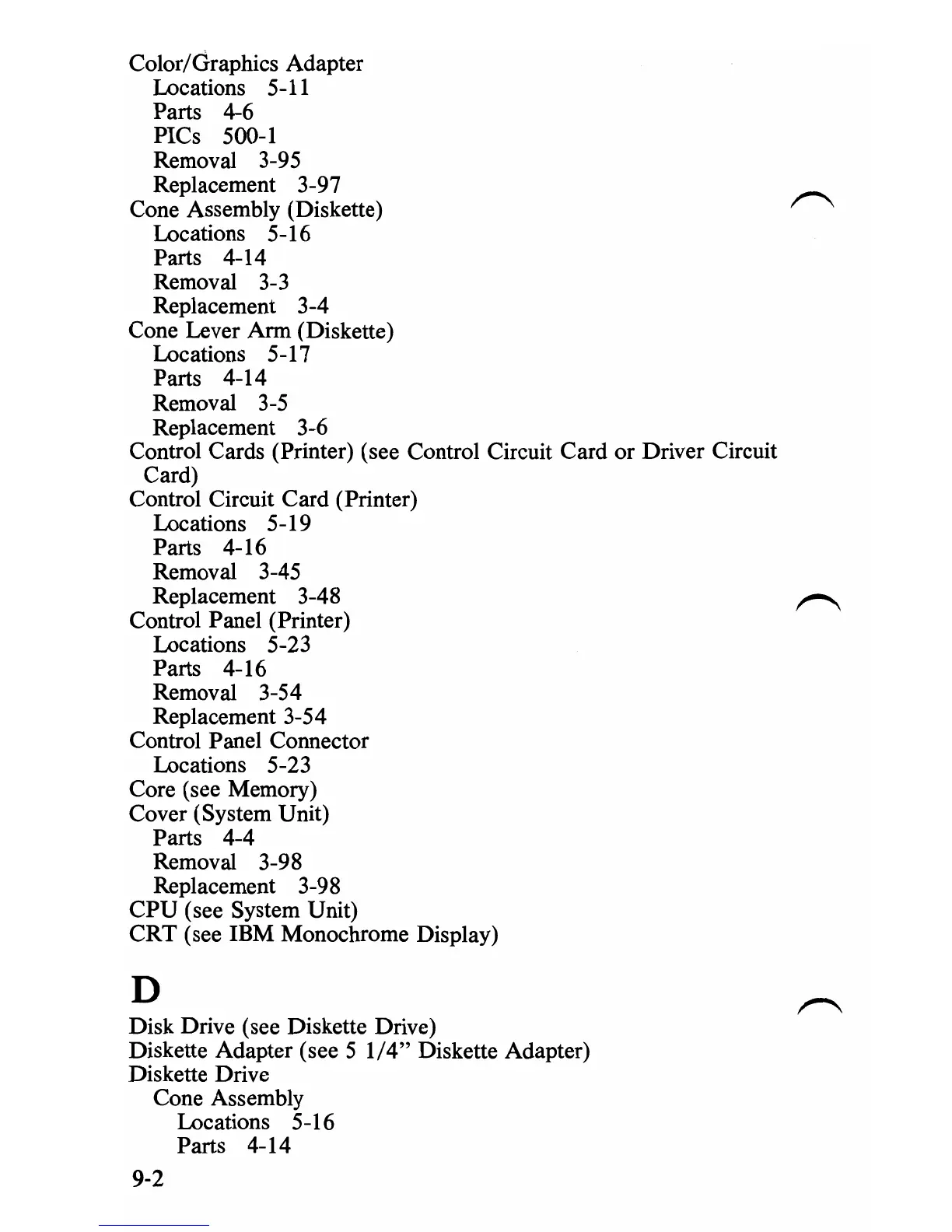

Color/Graphics Adapter
Locations 5-11
Parts 4-6
PICs 500-1
Removal 3-95
Replacement 3-97
Cone Assembly (Diskette)
Locations 5-16
Parts 4-14
Removal 3-3
Replacement 3-4
Cone Lever
Arm (Diskette)
Locations 5-17
Parts 4-14
Removal
3-5
Replacement 3-6
Control Cards (Printer) (see Control Circuit Card or Driver Circuit
Card)
Control Circuit Card (Printer)
Locations 5-19
Parts 4-16
Removal 3-45
Replacement 3-48
Control Panel (Printer)
Locations 5-23
Parts 4-16
Removal 3-54
Replacement 3-54
Control Panel Connector
Locations 5-23
Core (see Memory)
Cover (System Unit)
Parts 4-4
Removal 3-98
Replacement 3-98
CPU (see System Unit)
CRT (see IBM Monochrome Display)
D
Disk Drive (see Diskette Drive)
Diskette Adapter (see 5
1/4" Diskette Adapter)
Diskette Drive
Cone Assembly
Locations 5-16
Parts 4-14
9-2

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
