IBM 5150 Hardware Maintenance Manual

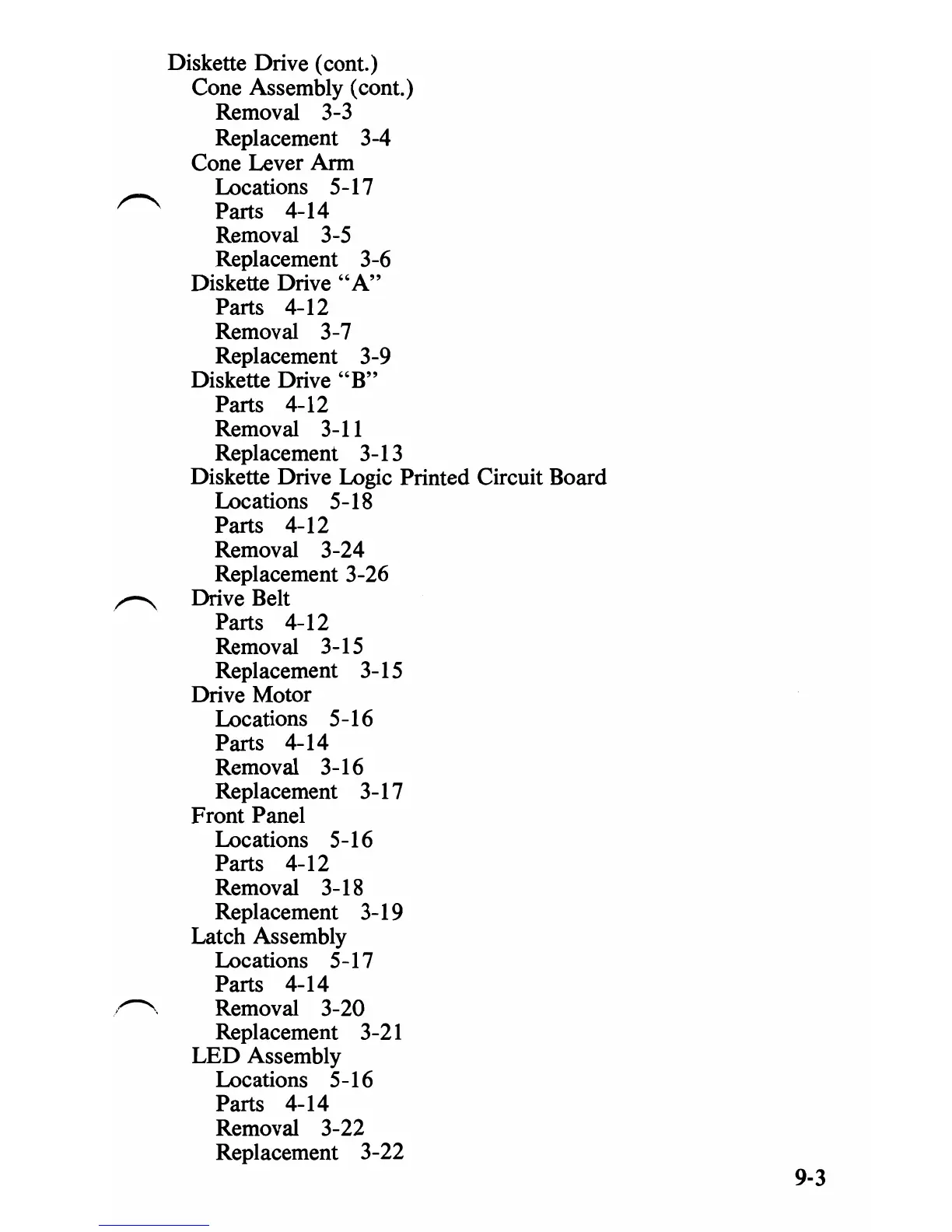

Diskette Drive (cont.)
Cone Assembly (cont.)
Removal 3-3
Replacement 3-4
Cone Lever
Arm
Locations 5-17
Parts 4-14
Removal
3-5
Replacement 3-6
Diskette Drive "A"
Parts 4-12
Removal 3-7
Replacement 3-9
Diskette Drive
"B"
Parts 4-12
Removal
3-11
Replacement 3-13
Diskette Drive Logic Printed Circuit Board
Locations 5-18
Parts 4-12
Removal 3-24
Replacement 3-26
Drive Belt
Parts 4-12
Removal 3-15
Replacement 3-15
Drive Motor
Locations 5-16
Parts 4-14
Removal 3-16
Replacement 3-17
Front Panel
Locations 5-16
Parts 4-12
Removal 3-18
Replacement 3-19
Latch Assembly
Locations 5-17
Parts 4-14
Removal 3-20
Replacement
3-21
LED Assembly
Locations 5-16
Parts 4-14
Removal 3-22
Replacement 3-22
9-3

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
