IBM 5150 Hardware Maintenance Manual

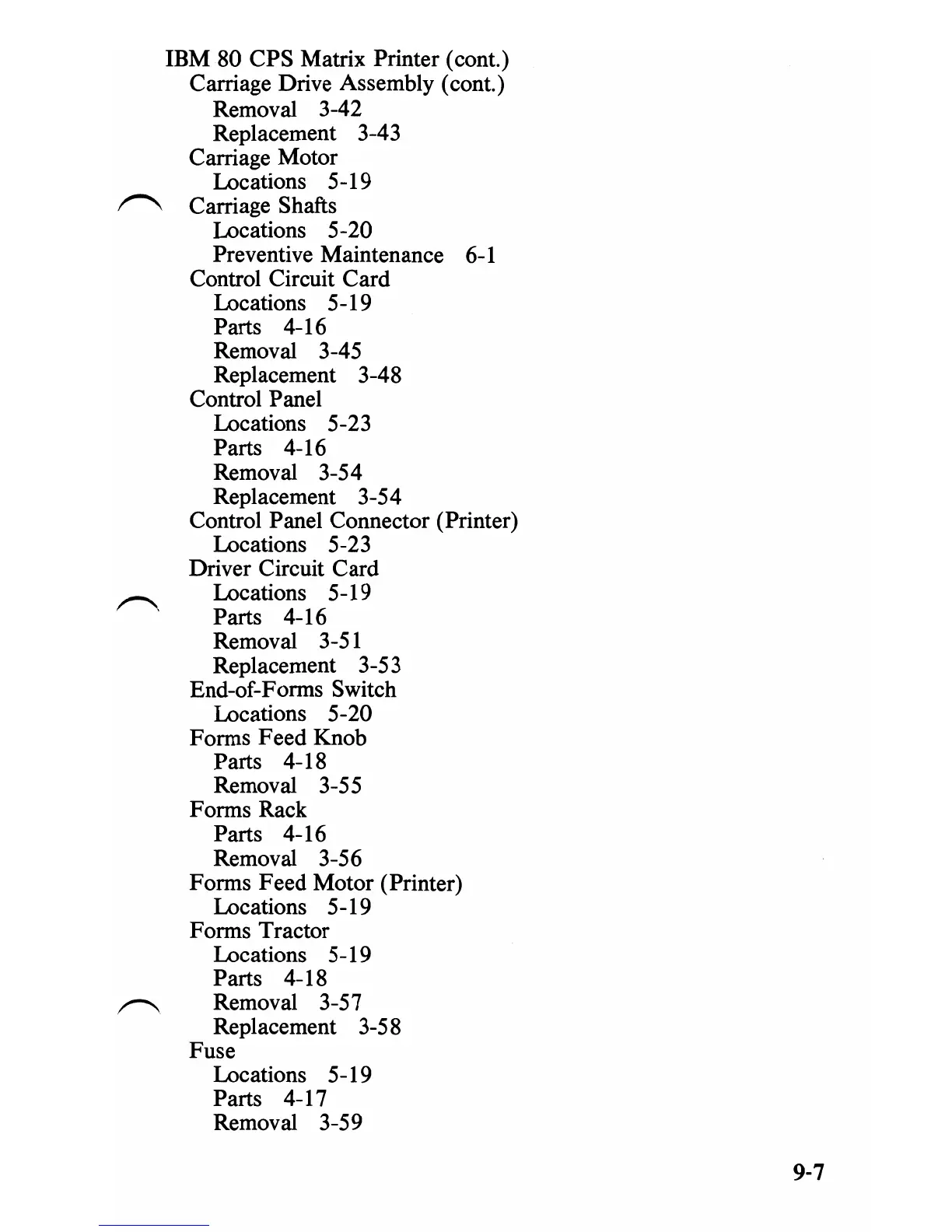

IBM 80 CPS Matrix Printer (cont.)
Carriage Drive Assembly (cont.)
Removal 3-42
Replacement 3-43
Carriage Motor
Locations 5-19
Carriage Shafts
Locations 5-20
Preventive Maintenance
6-1
Control Circuit Card
Locations 5-19
Parts 4-16
Removal 3-45
Replacement 3-48
Control Panel
Locations 5-23
Parts 4-16
Removal 3-54
Replacement 3-54
Control Panel Connector (Printer)
Locations 5-23
Driver Circuit Card
Locations 5-19
Parts 4-16
Removal 3-51
Replacement 3-53
End-of-Forms Switch
Locations 5-20
Forms Feed Knob
Parts 4-18
Removal 3-55
Forms Rack
Parts 4-16
Removal 3-56
Forms Feed Motor (Printer)
Locations 5-19
Forms Tractor
Locations 5-19
Parts 4-18
Removal 3-57
Replacement 3-58
Fuse
Locations 5-19
Parts 4-17
Removal 3-59
9-7

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
