IBM 5150 Hardware Maintenance Manual

~,

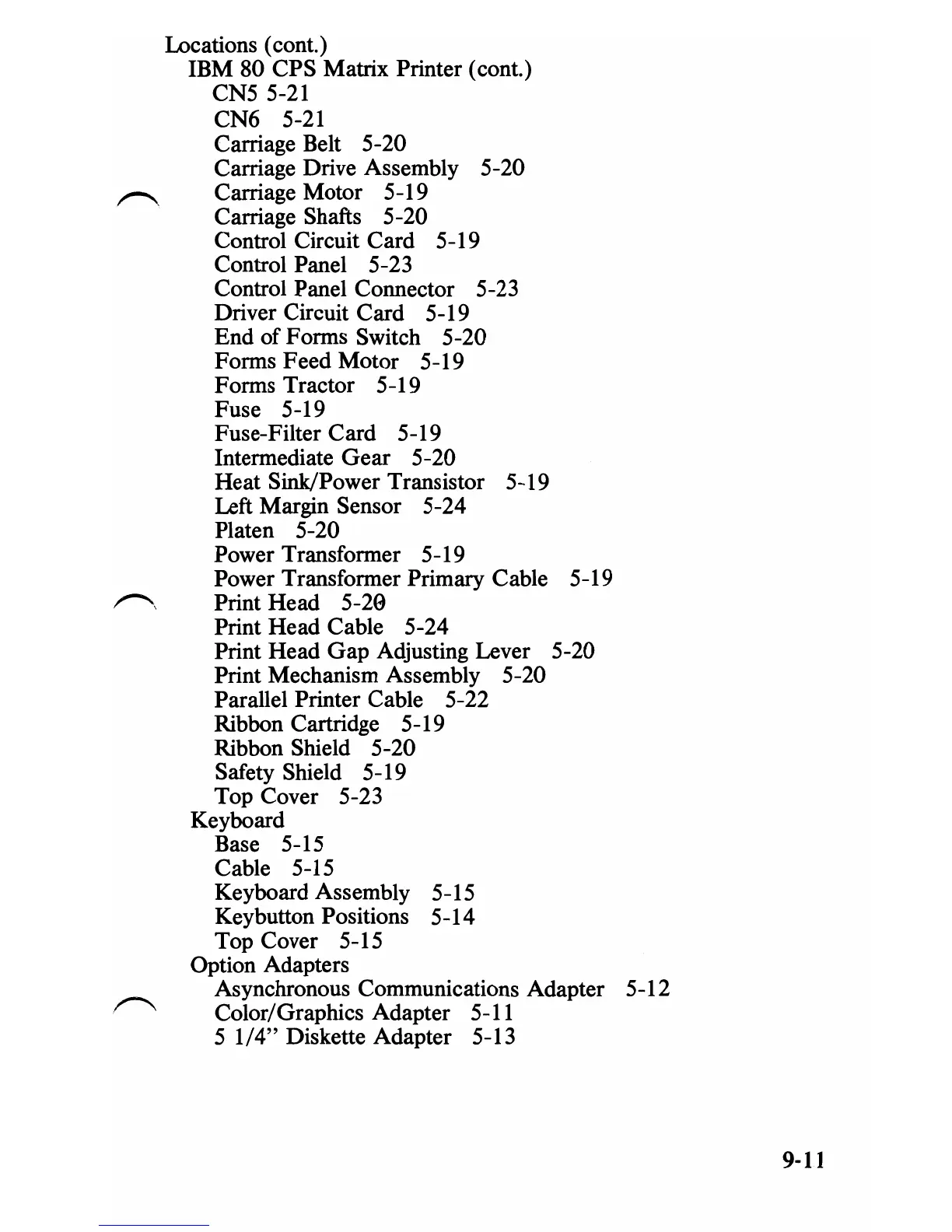

Locations (cont.)
IBM 80 CPS Matrix Printer (cont.)
CN55-21
CN6 5-21
Carriage Belt 5-20
Carriage Drive Assembly 5-20
Carriage Motor 5-19
Carriage Shafts 5-20
Control Circuit Card 5-19
Control Panel 5-23
Control Panel Connector 5-23
Driver Circuit Card 5-19
End of Forms Switch 5-20
Forms Feed Motor 5-19
Forms Tractor 5-19
Fuse 5-19
Fuse-Filter Card 5-19
Intermediate
Gear 5-20
Heat Sink/Power Transistor 5-19
Left Margin Sensor 5-24
Platen 5-20
Power Transformer 5-19
Power Transformer Primary Cable 5-19
Print Head 5-29
Print Head Cable 5-24
Print Head
Gap Adjusting Lever 5-20
Print Mechanism Assembly 5-20
Parallel Printer Cable 5-22
Ribbon Cartridge 5-19
Ribbon Shield 5-20
Safety Shield 5-19
Top Cover 5-23
Keyboard
Base 5-15
Cable 5-15
Keyboard Assembly 5-15
Keybutton Positions 5-14
Top Cover 5-15
Option Adapters
Asynchronous Communications Adapter
5-12
Color/Graphics Adapter 5-11
5
1/4" Diskette Adapter 5-13
9-11
