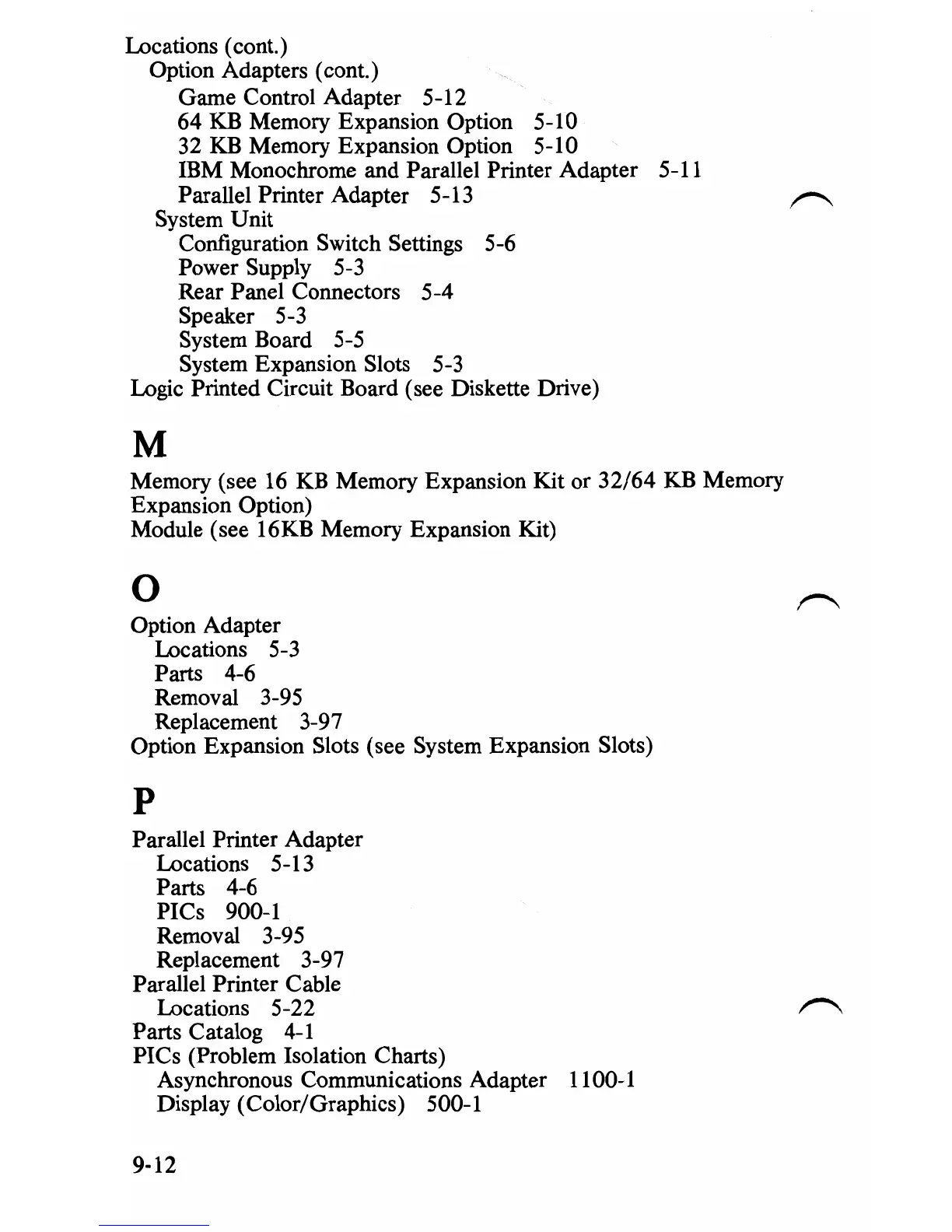

IBM 5150 Hardware Maintenance Manual

Locations (cont.)
Option Adapters (cont.)
Game Control Adapter 5-12
64
KB Memory Expansion Option 5-10
32 KB Memory Expansion Option 5-10
IBM Monochrome and Parallel Printer Adapter 5-11
Parallel Printer Adapter 5-13
System Unit
Configuration Switch Settings 5-6
Power Supply 5-3
Rear Panel Connectors 5-4
Speaker 5-3
System Board
5-5
System Expansion Slots 5-3
Logic Printed Circuit Board (see Diskette Drive)
M
Memory (see 16 KB Memory Expansion Kit or 32/64 KB Memory
Expansion Option)
Module (see 16KB Memory Expansion Kit)
o
Option Adapter
Locations 5-3
Parts 4-6
Removal 3-95
Replacement 3-97
Option Expansion Slots (see System Expansion Slots)
p
Parallel Printer Adapter
Locations 5-13
Parts 4-6
PICs 900-1
Removal 3-95
Replacement 3-97
Parallel Printer Cable
Locations 5-22
Parts Catalog
4-1
PIes (Problem Isolation Charts)
Asynchronous Communications Adapter 1100-1
Display (Color/Graphics) 500-1
9-12

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
