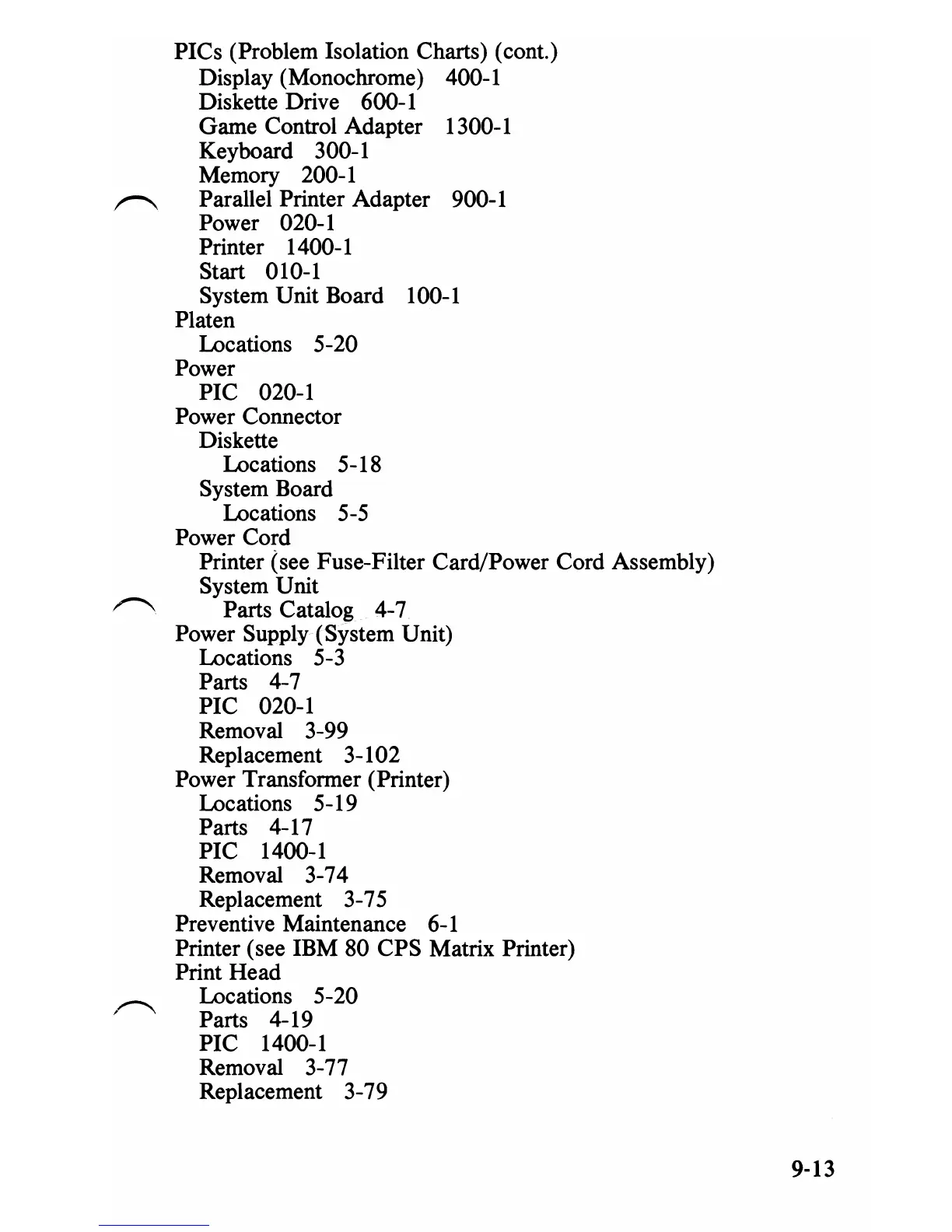

IBM 5150 Hardware Maintenance Manual

PICs (Problem Isolation Charts) (cont.)
Display (Monochrome) 400-1
Diskette Drive 600-1
Game Control Adapter 1300-1
Keyboard 300-1
Memory 200-1
Parallel Printer Adapter 900-1
Power 020-1
Printer 1400-1
Start 010-1
System Unit Board 100-1
Platen
Locations 5-20
Power
PIC 020-1
Power Connector
Diskette
Locations 5-18
System Board
Locations 5-5
Power Cord
Printer (see Fuse-Filter Card/Power Cord Assembly)
System Unit
Parts Catalog 4-7
Power Supply (System Unit)
Locations 5-3
Parts 4-7
PIC 020-1
Removal 3-99
Replacement 3-102
Power Transformer (Printer)
Locations 5-19
Parts 4-17
PIC 1400-1
Removal 3-74
Replacement 3-75
Preventive Maintenance
6-1
Printer (see IBM 80 CPS Matrix Printer)
Print Head
Locations 5-20
Parts 4-19
PIC 1400-1
Removal 3-77
Replacement 3-79
9-13

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
