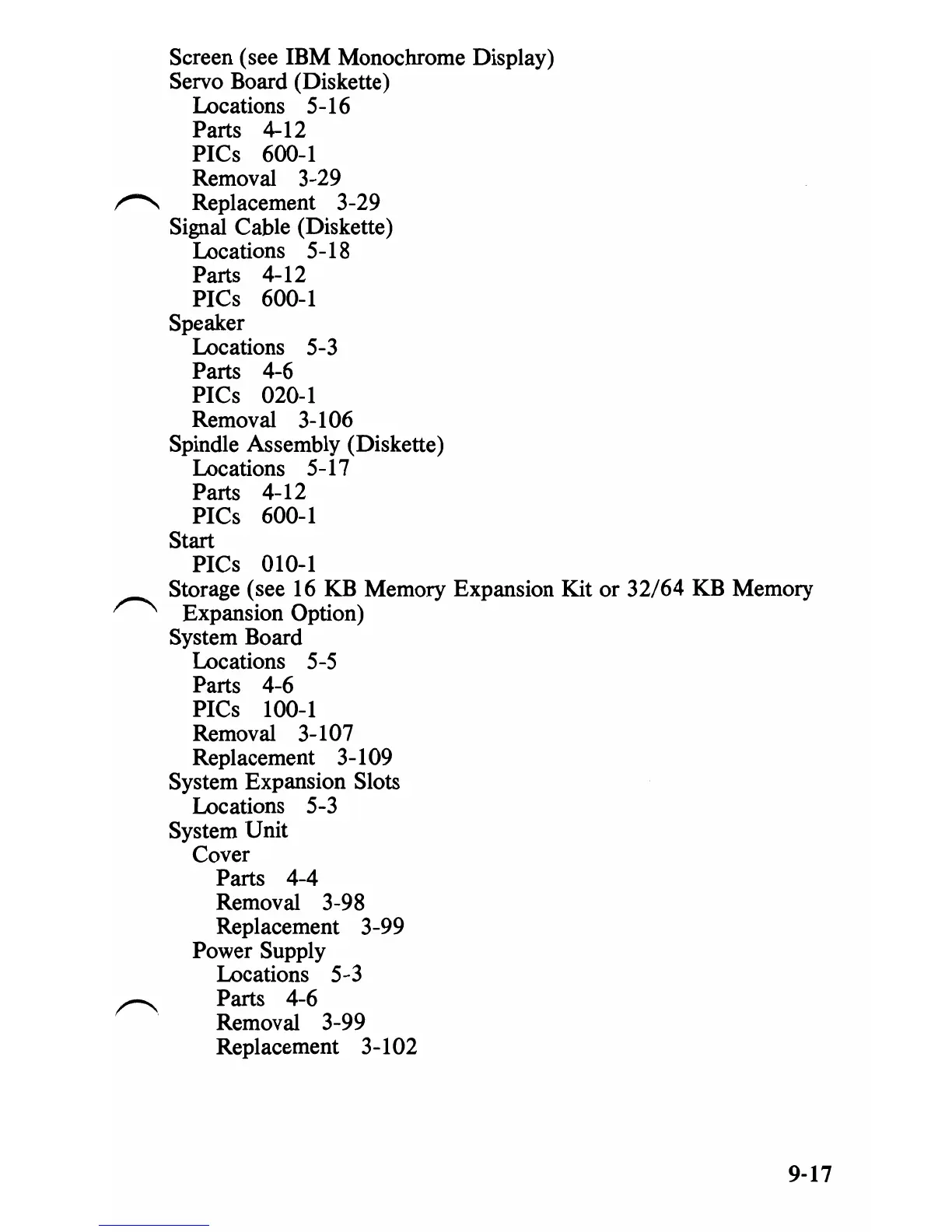

IBM 5150 Hardware Maintenance Manual

Screen (see IBM Monochrome Display)
Servo Board (Diskette)
Locations 5-16
Parts 4-12
PICs 600-1
Removal 3-29
~ Replacement 3-29
Signal Cable (Diskette)
Locations 5-18
Parts 4-12
PICs 600-1
Speaker
Locations 5-3
Parts 4-6
PICs 020-1
Removal 3-106
Spindle Assembly (Diskette)
Locations 5-17
Parts 4-12
PICs 600-1
Start
PICs 010-1
Storage (see
16 KB Memory Expansion Kit or 32/64 KB Memory
r--.. Expansion Option)
System Board
Locations
5-5
Parts 4-6
PICs
100-1
Removal 3-107
Replacement 3-109
System Expansion Slots
Locations 5-3
System Unit
Cover
Parts 4-4
Removal 3-98
Replacement 3-99
Power Supply
Locations 5-3
Parts 4-6
Removal 3-99
Replacement 3-102
9-17

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
