IBM 5150 Hardware Maintenance Manual

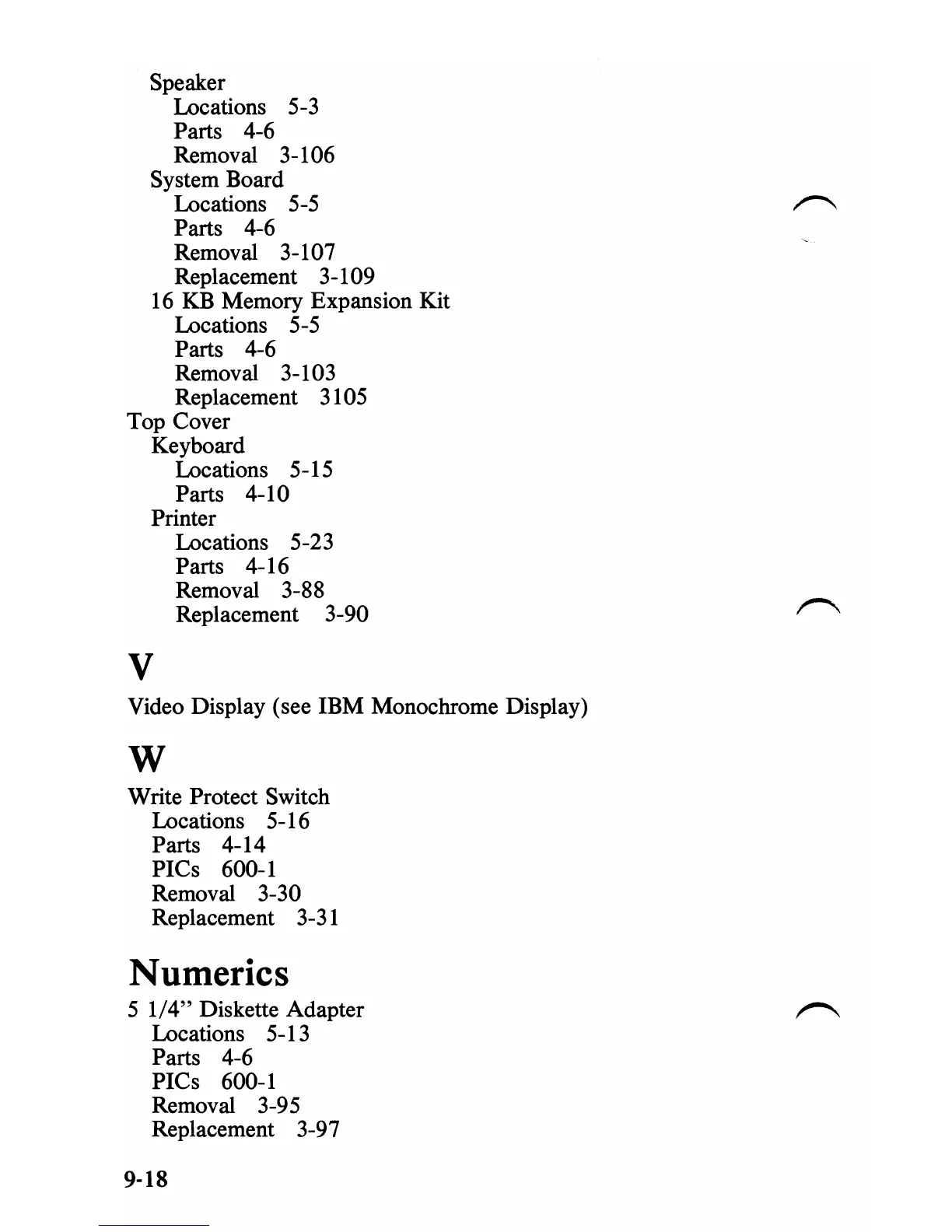

Speaker
Locations 5-3
Parts 4-6
Removal 3-106
System Board
Locations 5-5
Parts 4-6
Removal 3-107
Replacement 3-109
16 KB Memory Expansion Kit
Locations 5-5
Parts 4-6
Removal 3-103
Replacement 3105
Top Cover
Keyboard
Locations 5-15
Parts 4-10
Printer
Locations 5-23
Parts 4-16
Removal 3-88
Replacement 3-90
v
Video Display (see IBM Monochrome Display)
w
Write Protect Switch
Locations 5-16
Parts 4-14
PICs 600-1
Removal 3-30
Replacement 3-31
Numerics
5 1/4" Diskette Adapter
Locations 5-13
Parts 4-6
PICs 600-1
Removal 3-95
Replacement 3-97
9-18

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
