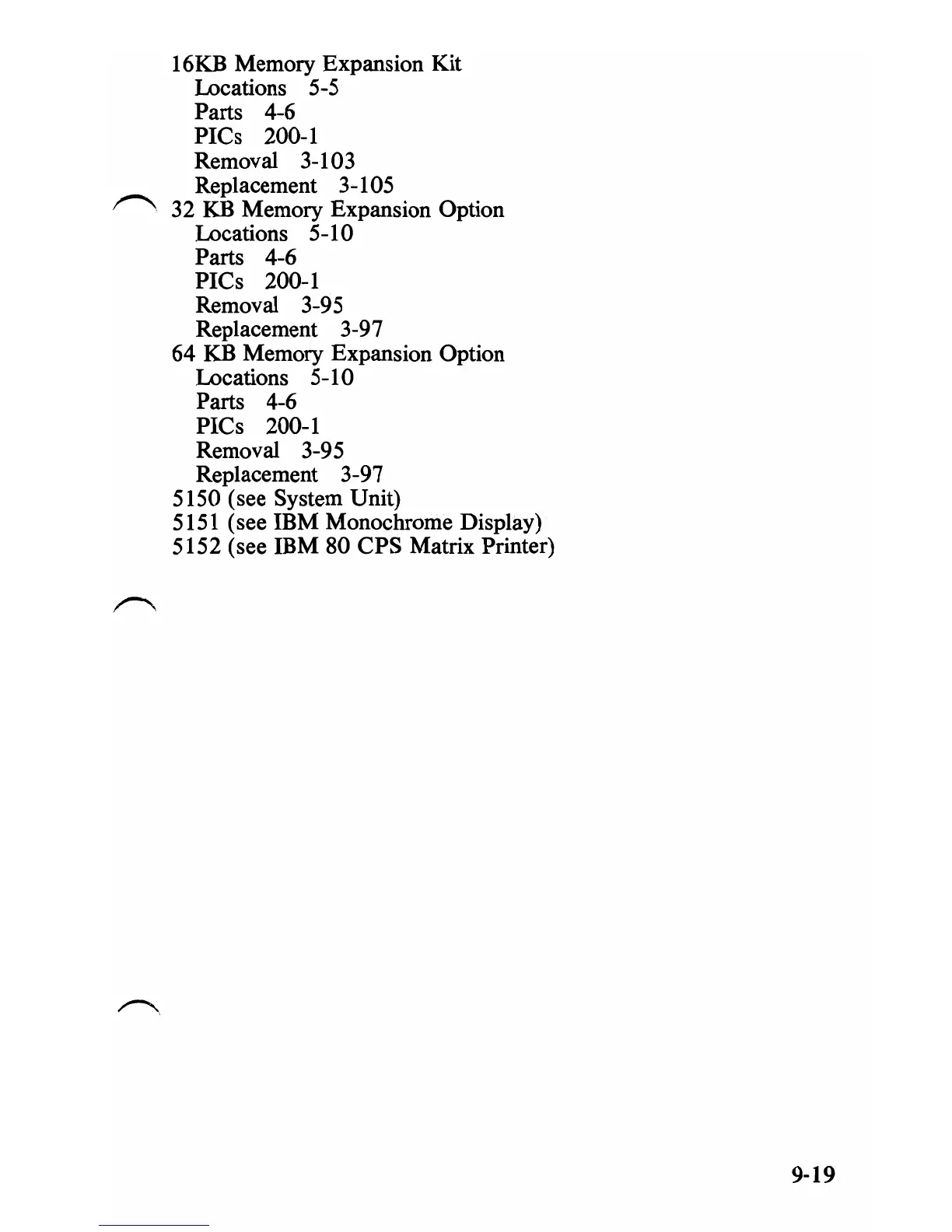

16KB Memory Expansion Kit
Locations
5-5
Parts 4-6
PICs 200-1
Removal 3-103
Replacement 3-105
32
KB
Memory Expansion Option
Locations 5-10
Parts 4-6
PICs 200-1
Removal 3-95
Replacement 3-97
64
KB
Memory Expansion Option
Locations 5-10
Parts 4-6
PICs 200-1
Removal 3-95
Replacement 3-97
5150 (see System Unit)
5151 (see
IBM
Monochrome Display)
5152 (see
IBM
80 CPS Matrix Printer)
9-19
