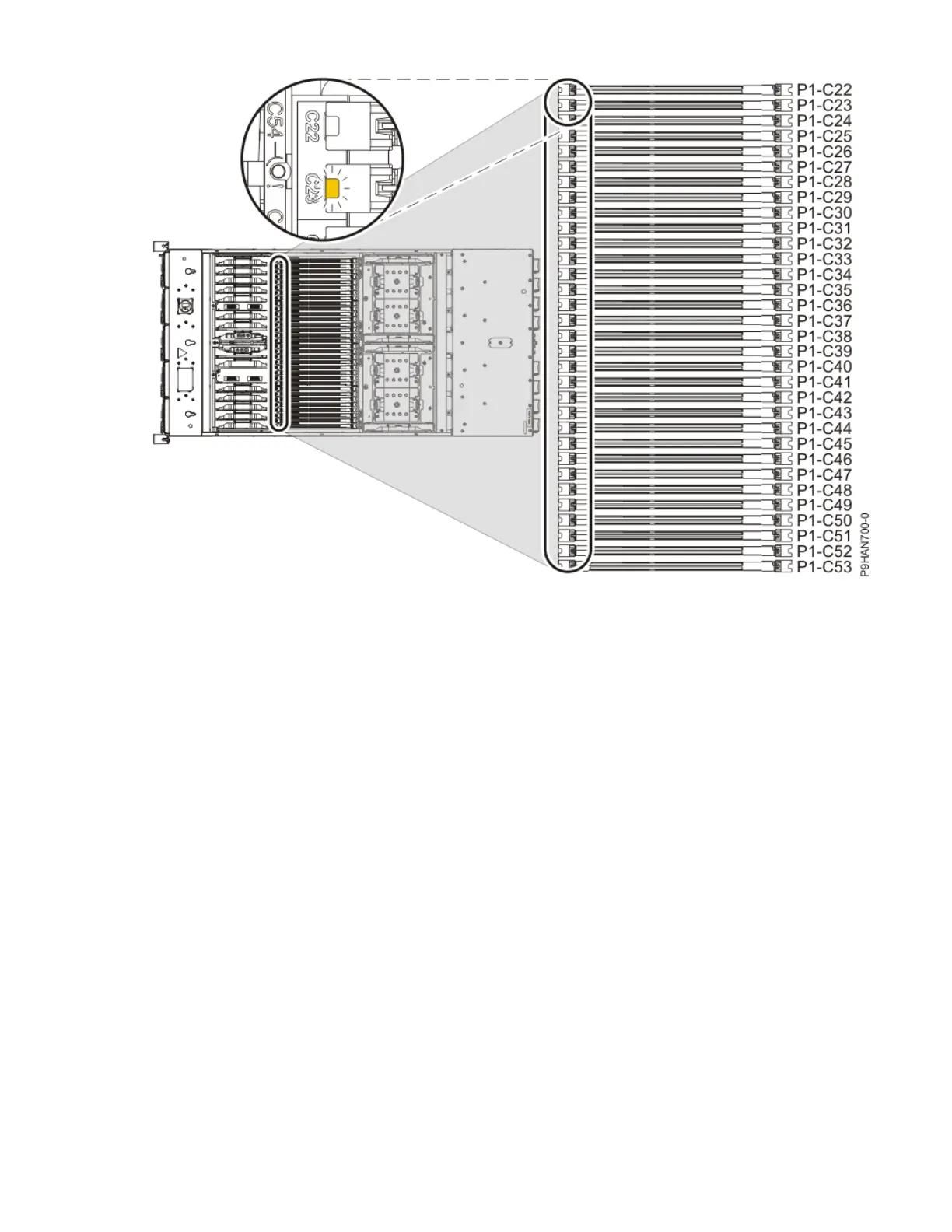

Figure 142. Memory module LEDs and locations
Removing a memory module from the 9080-M9S system
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Note the location of the memory module that you are replacing.
3. Remove the memory module by pushing the tabs (A) down and outward as shown in the following
îš³gure.
The lever action of the tabs forces the memory module out of the connector.
164
Power Systems: Removing and replacing parts in the 9080-M9S system
