• When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap
is used for static control. It does not increase or decrease your risk of receiving electric
shock when using or working on electrical equipment.
• If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging
and installing or replacing hardware, touch an unpainted metal surface of the system for a
minimum of 5 seconds. If at any point in this service process you move away from the
system, it is important to again discharge yourself by touching an unpainted metal surface
for at least 5 seconds before you continue with the service process.
Installing an NVMe U.2 drive in the 9080-M9S system
To install an NVMe U.2 drive into the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Remove the NVMe U.2 drive îš³ller from the slot.
a) Press the NVMe drive îš³ller handle release latch (A) in the direction that is shown to release the
drive handle (B).
b) Pull the NVMe drive îš³ller out of the system.

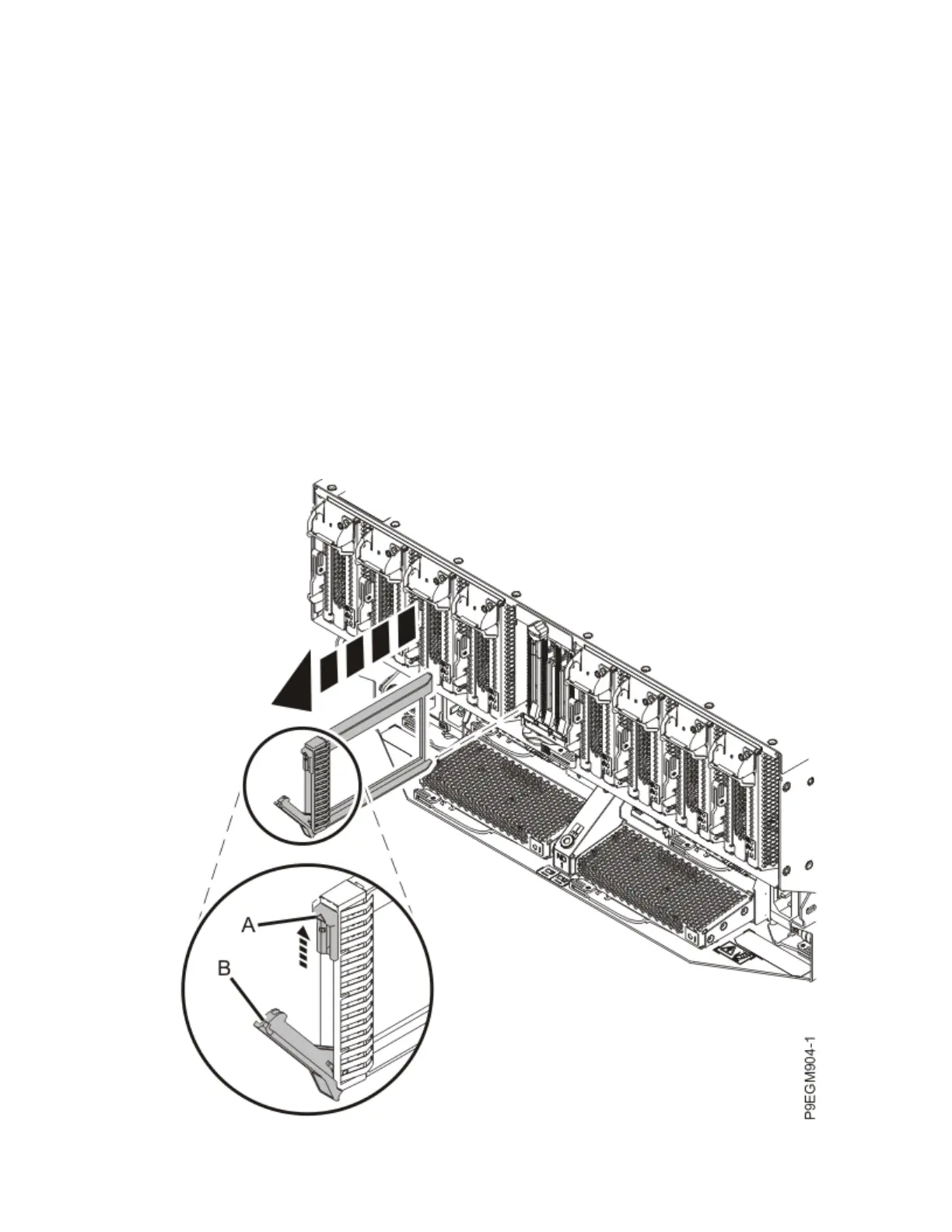

Figure 347. Removing a NVMe drive îš³ller from the 9080-M9S system
404
Power Systems: Removing and replacing parts in the 9080-M9S system
To Next Page
