3. If necessary, remove the NVMe U.2 drive from the antistatic package.
4. To install or replace an NVMe U.2 drive, complete the following steps:
a) Press the handle release latch (A) in the direction that is shown to release the latch handle.
b) Slide the NVMe U.2 drive into the slot until it’s fully seated.

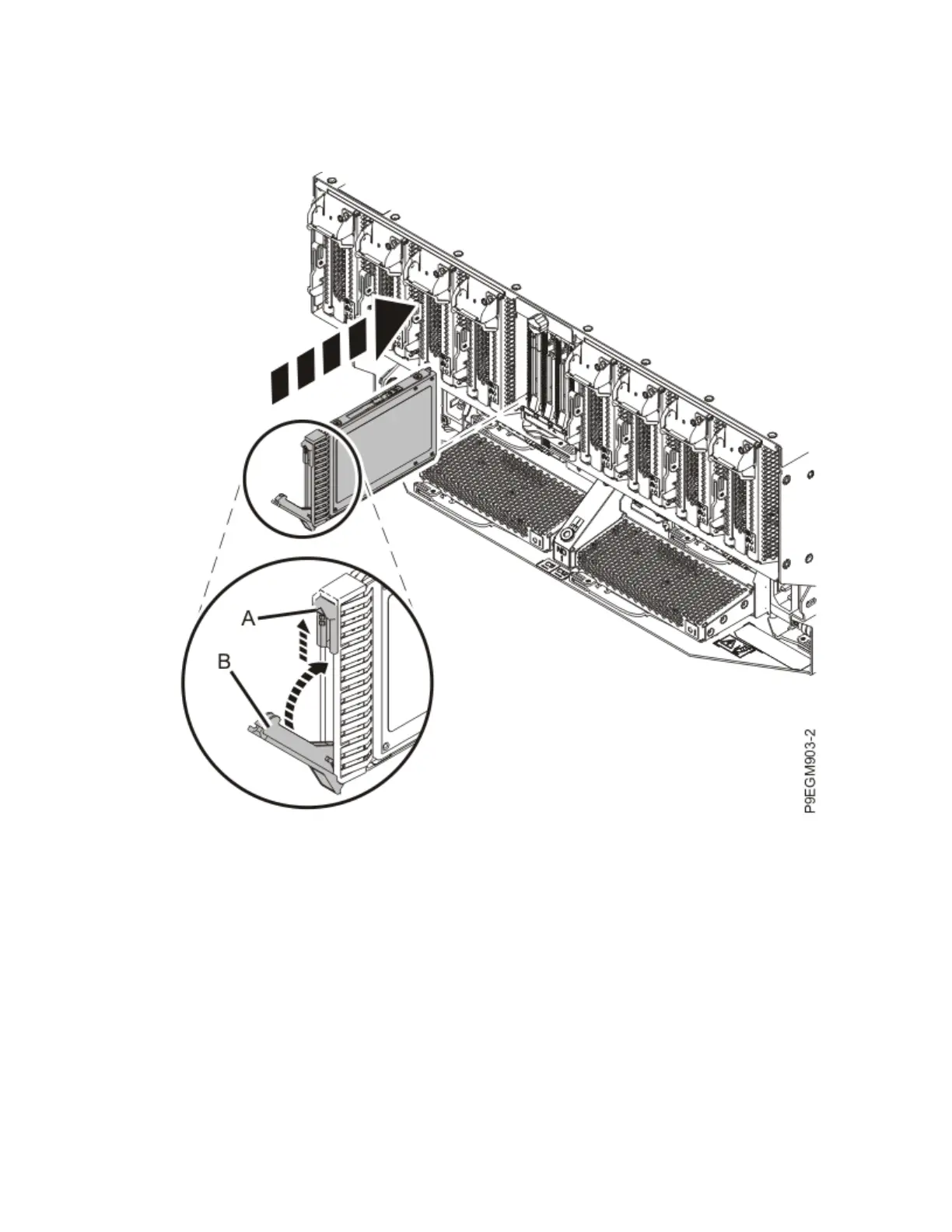

Figure 348. Installing or replacing an NVMe U.2 drive in the 9080-M9S system
c) Close the drive handle (B) to lock the NVMe U.2 drive in place.
Preparing the 9080-M9S system for operation after installing an NVMe U.2 drive
To prepare the system for operation after installing an NVMe U.2 drive, complete the steps in this
procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Put the cable management bracket in the operating position as shown in the following îš³gure.
a) Pull out the quarter-turn fasteners (B) and turn them to disengage them while moving the cable
management bracket (A) to its lower position.
b) Turn the quarter-turn fasteners (B) to engage and lock the bracket into position.
NVMe drives
405
