Removing a UPIC cable in the 9080-M9S system
To remove a UPIC cable from the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Identify and label where each end of a UPIC cable is connected to the system node and system control
unit.
3. To remove the UPIC cable from the system node, complete the following steps:

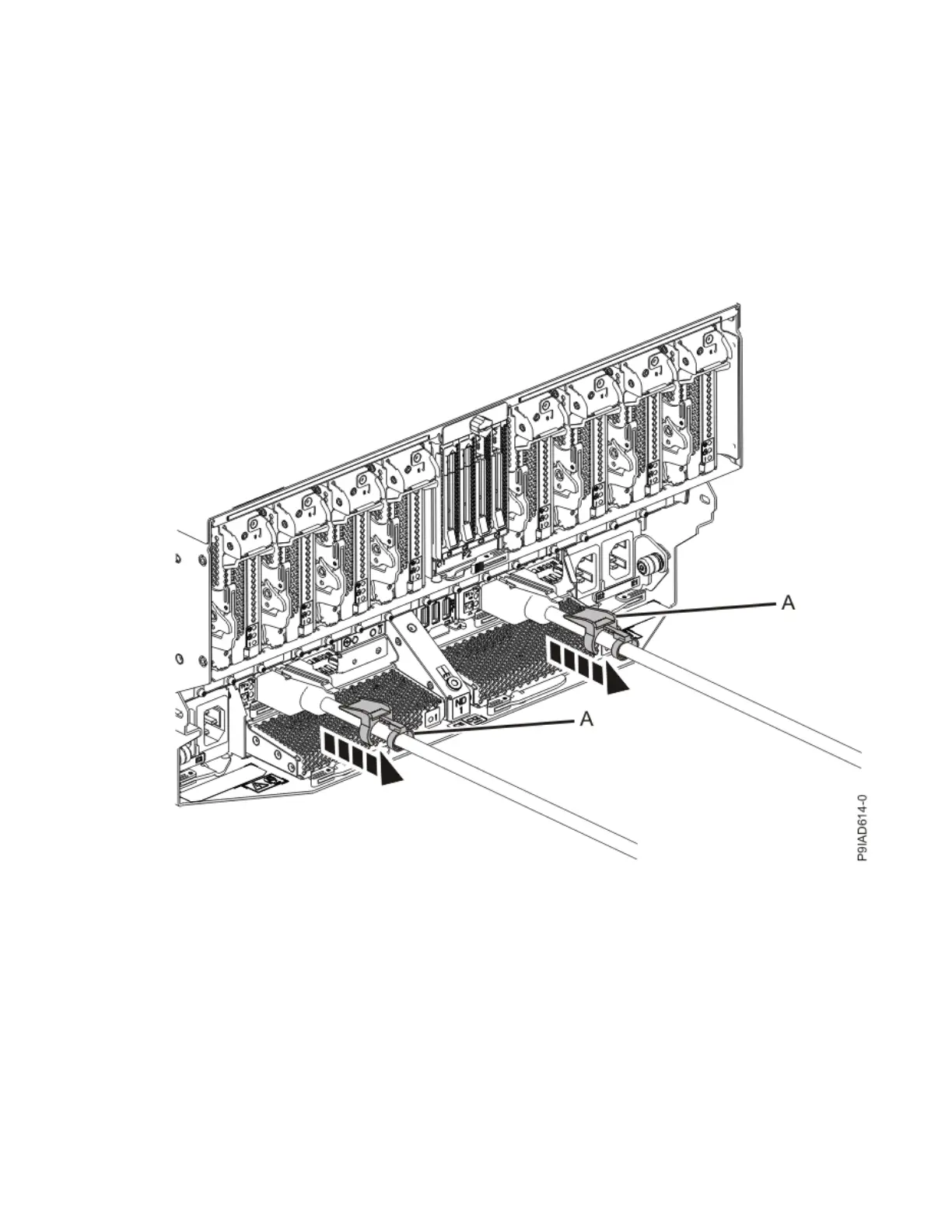

a. Remove the white plastic lock (A) from the plug housing as shown in the following îš³gure.
Figure 39. Removing the UPIC cable lock
b. Push down on the blue cable latch (B) and pull out the UPIC cable from the system node as shown
in the following îš³gure.
Cables
47
