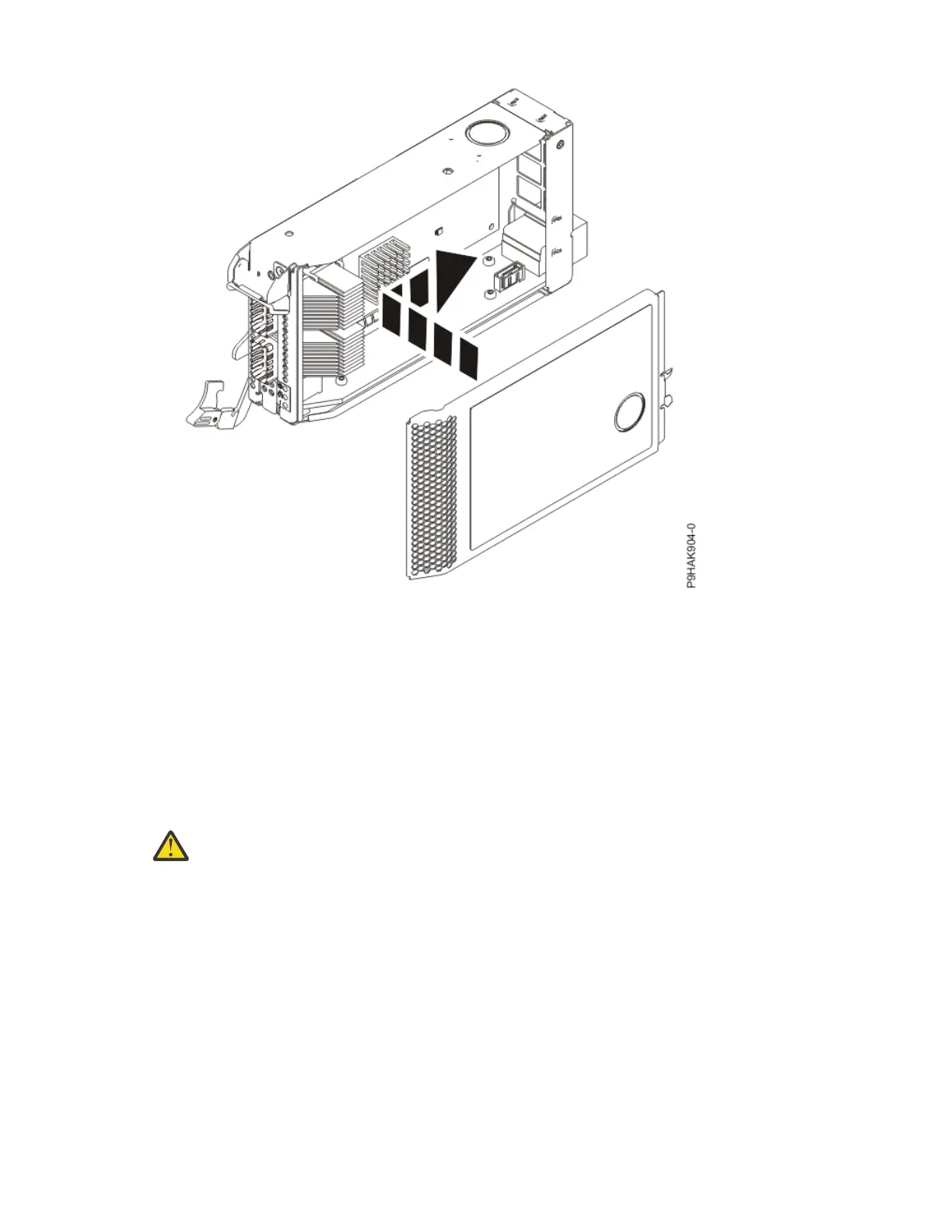

Figure 399. Replacing the side cover on the adapter cassette for the 9080-M9S system
Replacing a PCIe adapter cassette in the 9080-M9S system
To replace a PCIe adapter cassette in the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Ensure that the target slot is empty.
3. Slide the cassette into the slot by completing the following steps:
Attention:
Ensure proper alignment when you insert a adapter cassette into the system.
a) Align the cassette on the cassette rail in the cassette slot.
b) Slide the cassette forward until the cassette is fully seated.
c) To lock the adapter in its slot, rotate the adapter latch (A) in the direction that is shown in the
following îš³gure.
462
Power Systems: Removing and replacing parts in the 9080-M9S system
