USB card
Removing and replacing
Preparing the 9080-M9S system to remove and replace the USB card
To prepare the system to remove and replace a USB card, complete the steps in this procedure.
Procedure
1. If USB devices are connected to the USB card, ensure that the USB devices are not being used. Label
and remove the USB cables from the USB card.
2. If you chose to complete this repair with the power off, label and disconnect both UPIC cables from
the system control unit.
UPIC cable locations are P1-C1-T1 and P1-C2-T1.
a. Remove the white plastic lock (A) from the plug housing.

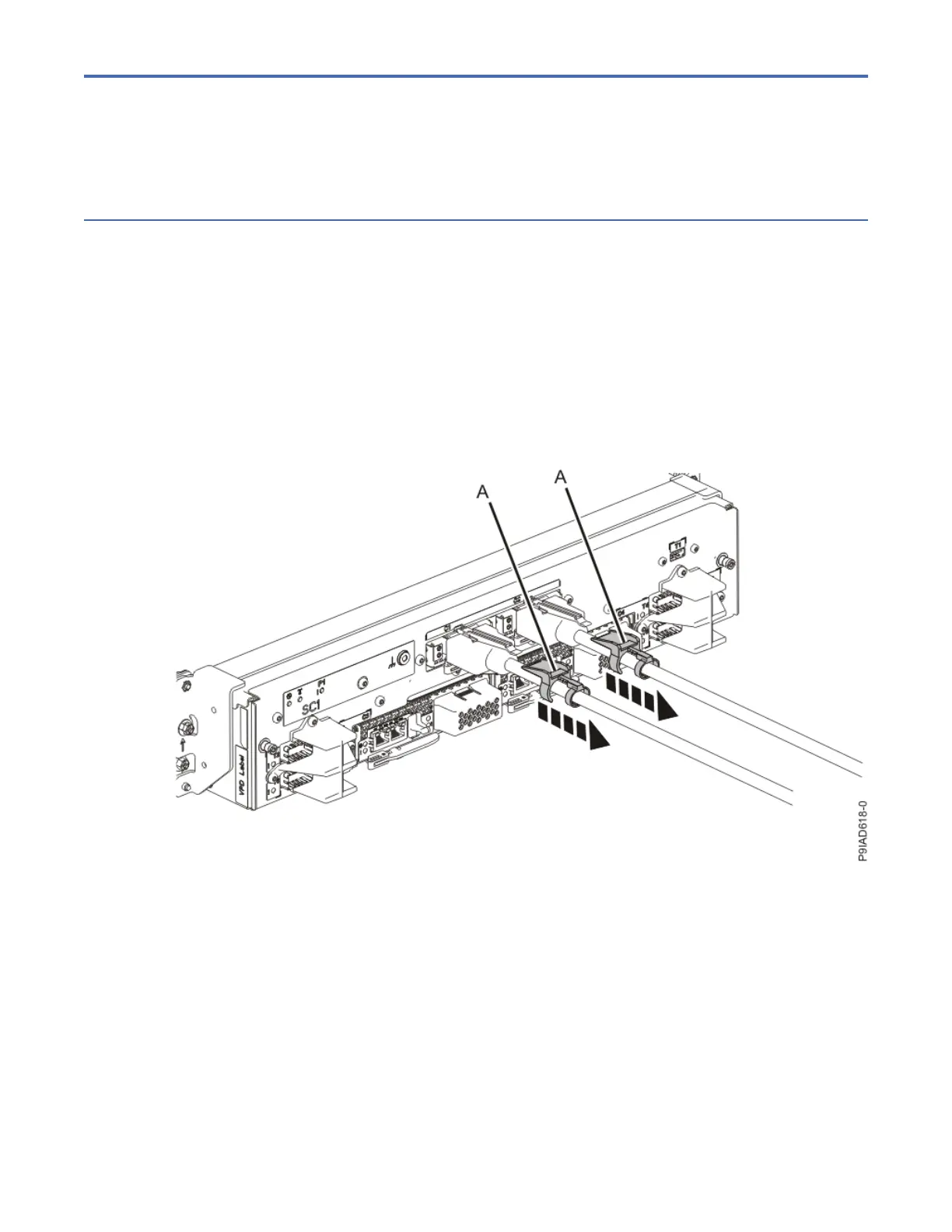

Figure 611. Removing the UPIC cable lock
b. Push down on the blue cable latch (B) and pull out the UPIC cable from the system control unit.
