Removing the USB card from the 9080-M9S system
To remove the USB card from the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. To remove the USB card, complete the following steps:
a) Press the blue USB card handle latch (A) to the left as shown in the following îš³gure.
b) Rotate the handle to the left in the direction shown in the following îš³gure to unlock the USB card
from its slot.
c) Hold on to the USB card handle and by using your hand to support the bottom of the USB card, pull
out the USB card from its slot as shown in the following îš³gure.

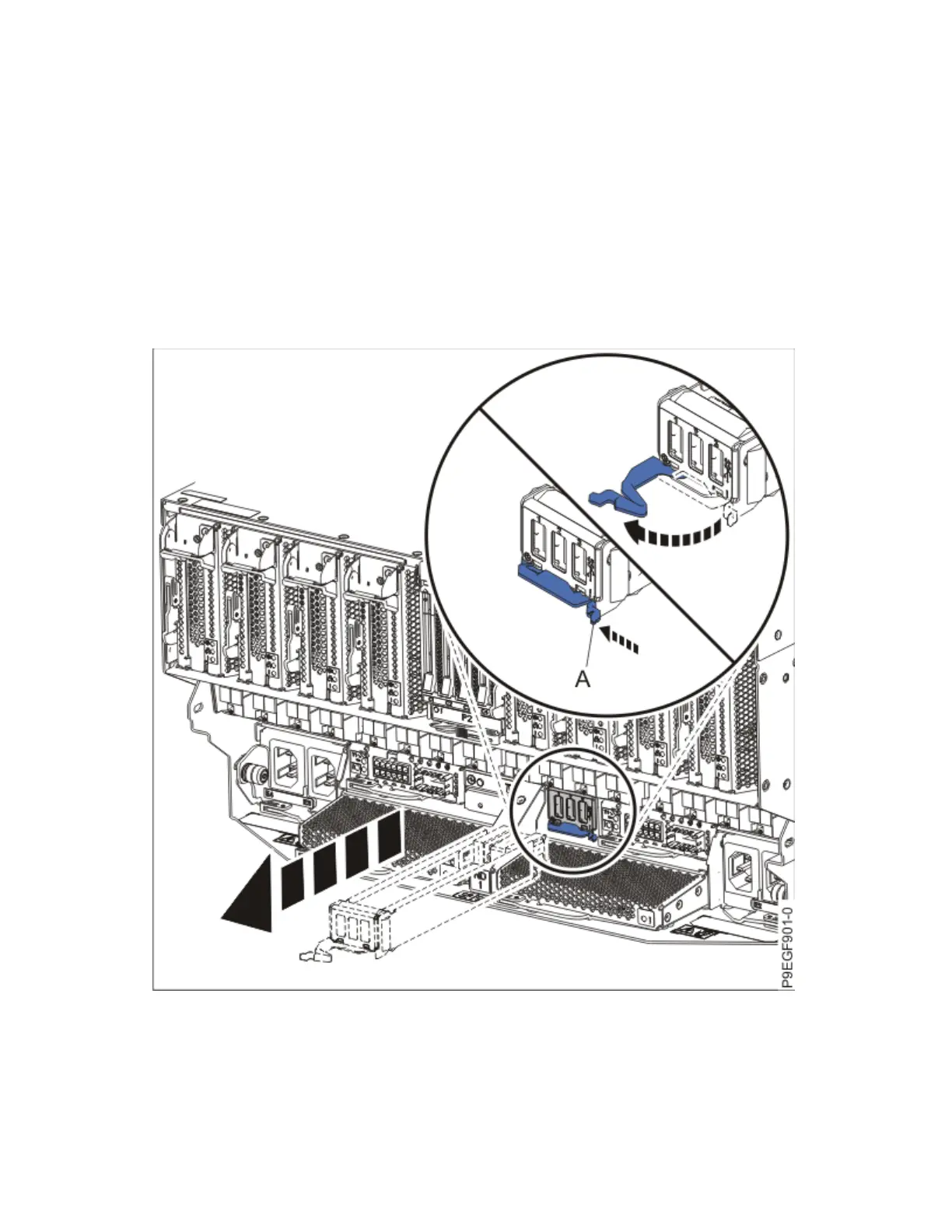

Figure 614. Removing a USB card from the system
702
Power Systems: Removing and replacing parts in the 9080-M9S system
