Figure 69. Removing the concurrent maintenance circuit card
Replacing the concurrent maintenance circuit card in the 9080-M9S system
node
To replace the concurrent maintenance circuit card, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Replace the concurrent maintenance circuit card.

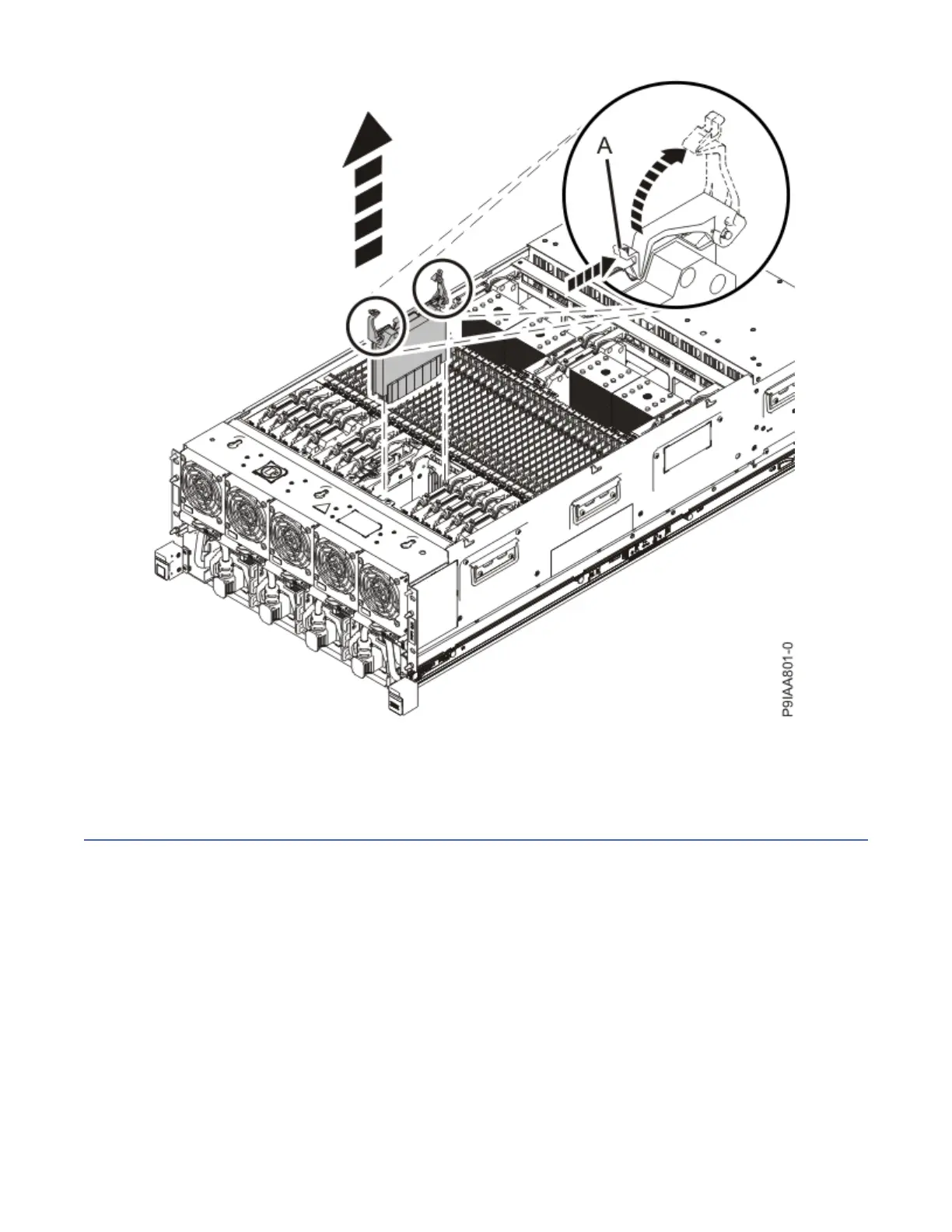

a) With the levers (A) in the open position, hold the concurrent maintenance circuit card by the levers
and lower the card into its slot in the system. Refer to the following image.
b) Gently push the concurrent maintenance circuit card into its connector.
c) Rotate the levers in the direction shown and press down on the latches to secure the card in its
slot.
78
Power Systems: Removing and replacing parts in the 9080-M9S system
