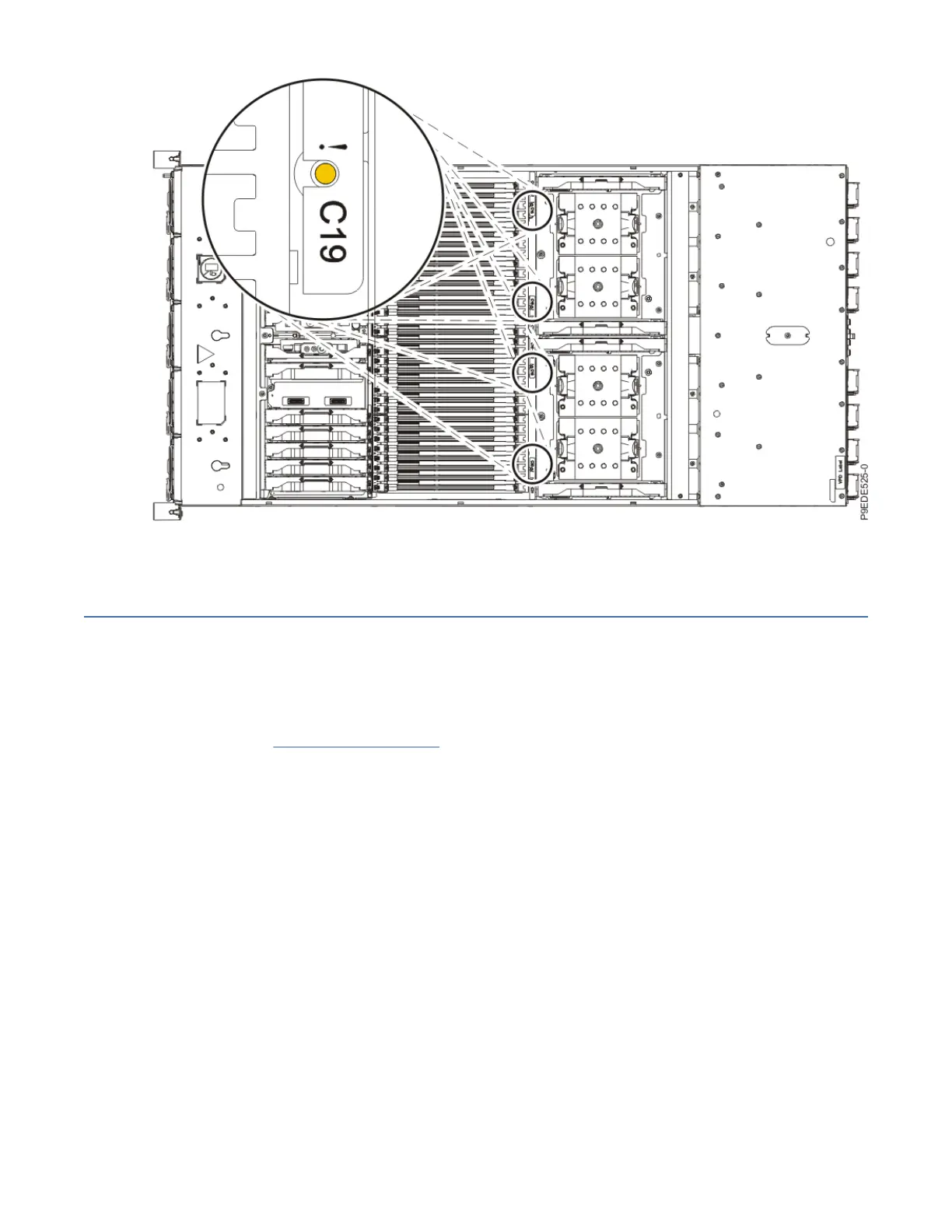

Figure 564. System processor module LEDs and locations
Removing a system processor module from the 9080-M9S system
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Open the packaging of the new system processor module, and place the cover upside down next to the
tray, as shown in Figure 565 on page 645. The cover is used for the system processor module that
you are replacing.
644
Power Systems: Removing and replacing parts in the 9080-M9S system
