• When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is
used for static control. It does not increase or decrease your risk of receiving electric shock
when using or working on electrical equipment.
• If you do not have an ESD wrist strap, just prior to removing the product from ESD packaging
and installing or replacing hardware, touch an unpainted metal surface of the system for a
minimum of 5 seconds. If at any point in this service process you move away from the
system, it is important to again discharge yourself by touching an unpainted metal surface for
at least 5 seconds before you continue with the service process.
Removing a PCIe adapter from the 9080-M9S system
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Remove the adapter cassette from the slot:
a) Press in on the latch release (A) as shown in the following îš³gure.
The latch is released.
b) Rotate the latch in the direction shown.
The cassette is released from the slot.
c) Pull the cassette straight out from the slot.

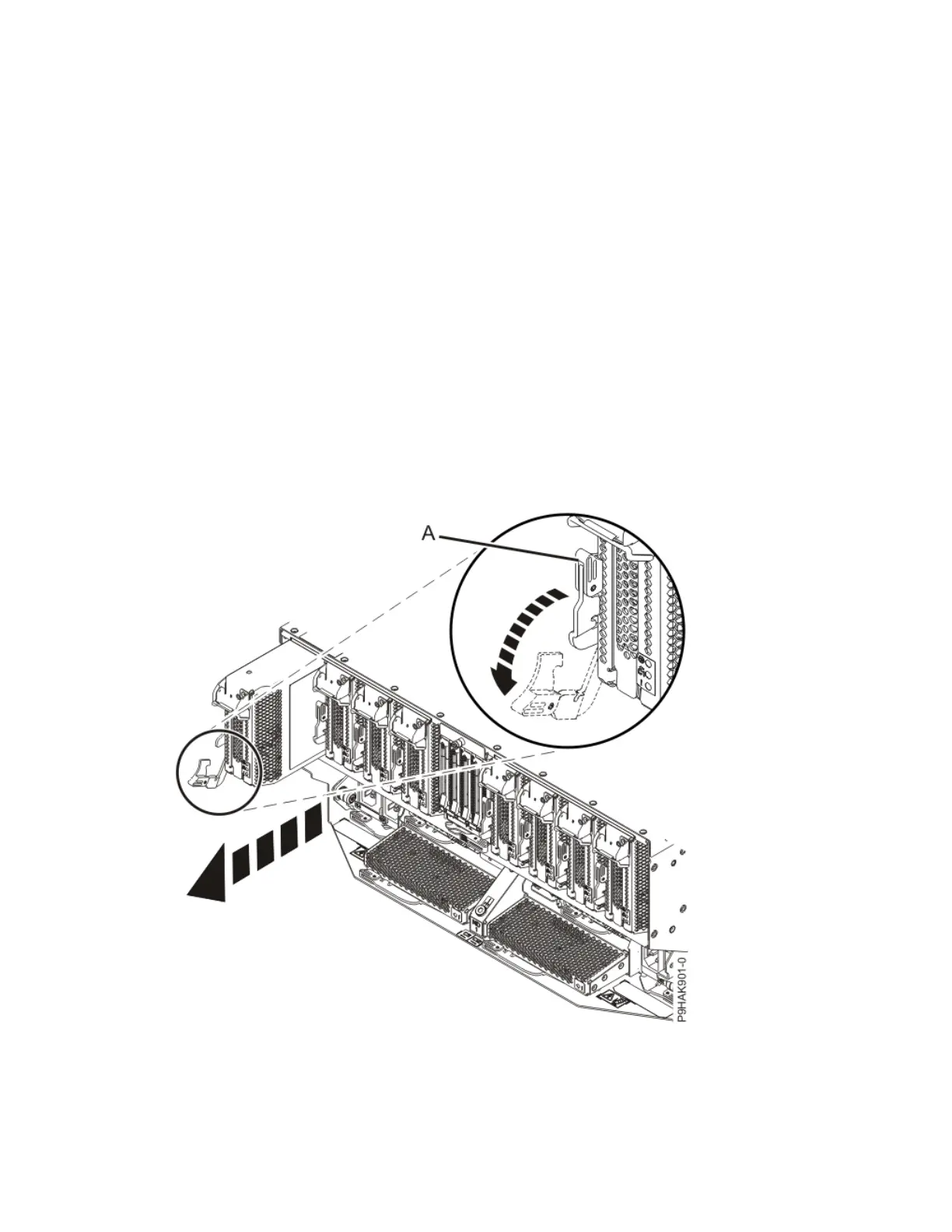

Figure 407. Removing the adapter cassette from the 9080-M9S system
3. Remove the side cover from the cassette.
a) Press the release button on the side cover and slide the cover in the direction that is shown.
b) Lift the side cover off the cassette.
PCIe adapters
469
