NVMe backplane
Preparing the 9080-M9S system to remov
e and replace an NVMe drive
backplane
Procedure
1.
Open the rear rack door, if necessary.
2.
Label and disconnect both UPIC cables from the system control unit.
UPIC cable locations are P1-C1-T1 and P1-C2-T1.
a.
Remove the white plastic lock
(A)
from the plug housing.

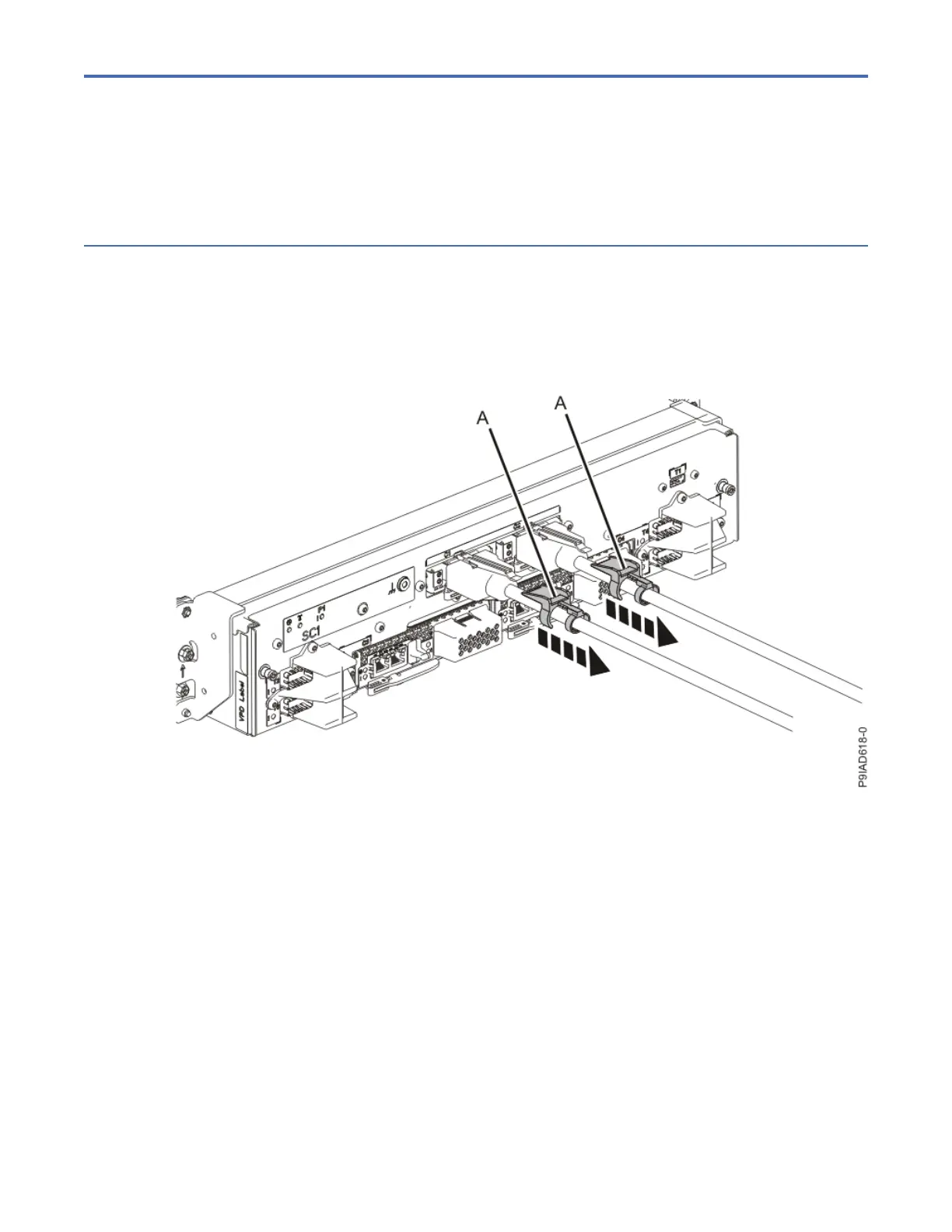

Figure 328. Removing the UPIC cable lock
b.
Push down on the blue cable latch
(B)
and pull out the UPIC cable from the system control unit.
