Removing the service processor card from the 9080-M9S system control unit
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. To remove the service processor card, complete the following steps:
a) For the service processor card that had the amber LED identiîš³ed previously, pull the blue handle
latch (A) to the right as shown in the following îš³gure.
b) Hold on to the handle and by using your hand to support the bottom of the service processor card,
pull out the service processor card from its slot as shown in the following îš³gure.

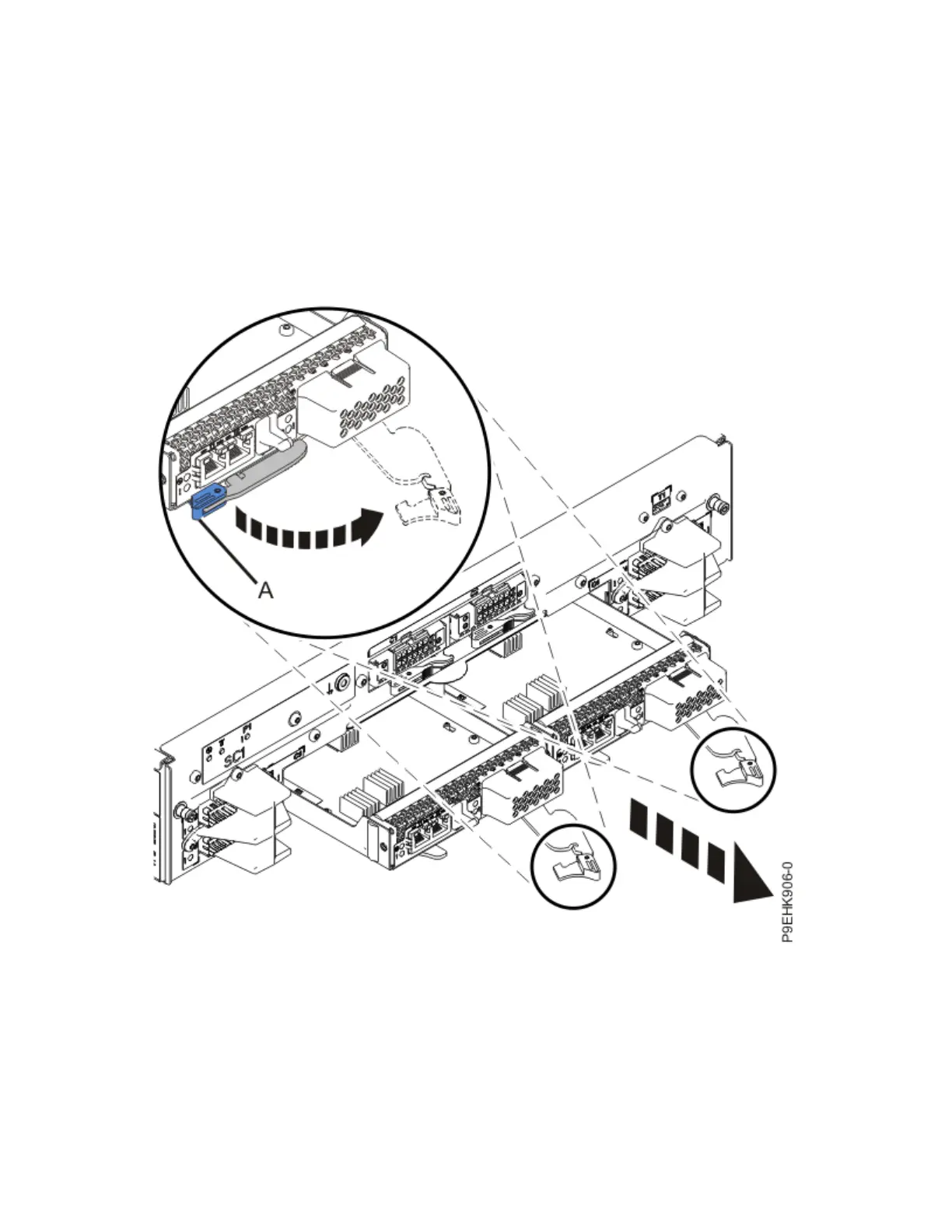

Figure 493. Removing the service processor card
Replacing the service processor card in the 9080-M9S system control unit
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. To replace the service processor card, complete the following steps:
Service processor cards
569
