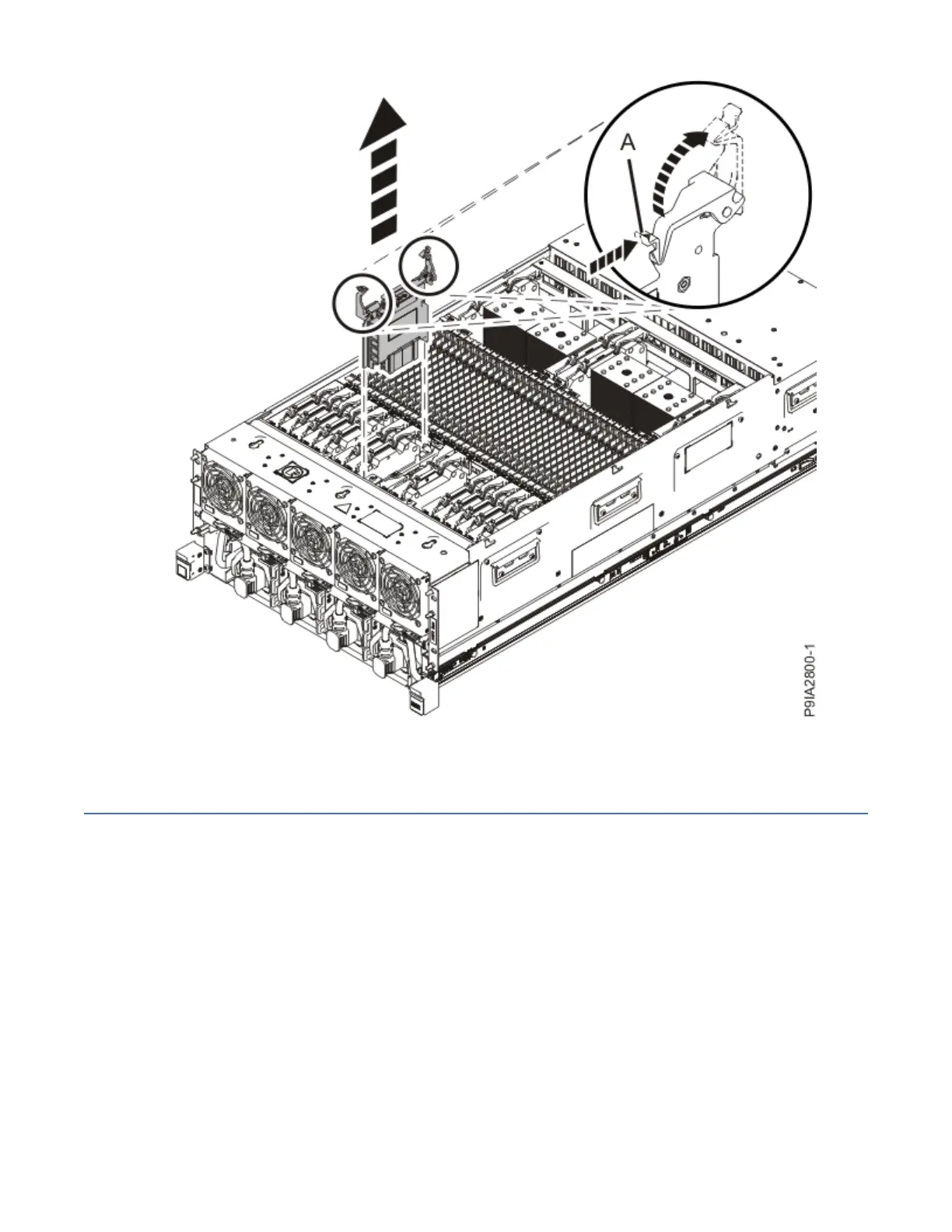

Figure 432. Removing the Power APSS and TPM card
Replacing the Power APSS and TPM card in the 9080-M9S system node
To replace the Power APSS and trusted platform module (TPM) card, complete the steps in this
procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Replace the Power APSS and TPM card.
a) With the levers (A) in the open position, hold the Power APSS and TPM card by the levers and lower
the card into its slot in the system. Refer to the following image.
b) Gently push the Power APSS and TPM card card into its connector.
c) Rotate the levers in the direction shown and press down on the latches to secure the card in its
slot.
496
Power Systems: Removing and replacing parts in the 9080-M9S system
