Figure 415. Installing a cassette in the 9080-M9S system
Preparing the 9080-M9S system for operation after removing and replacing an adapter
To prepare the system for operation after removing and replacing an adapter, complete the steps in this
procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. If removed, connect the cables or transceivers to the adapter.
3. Route the cables through the cable management bracket.

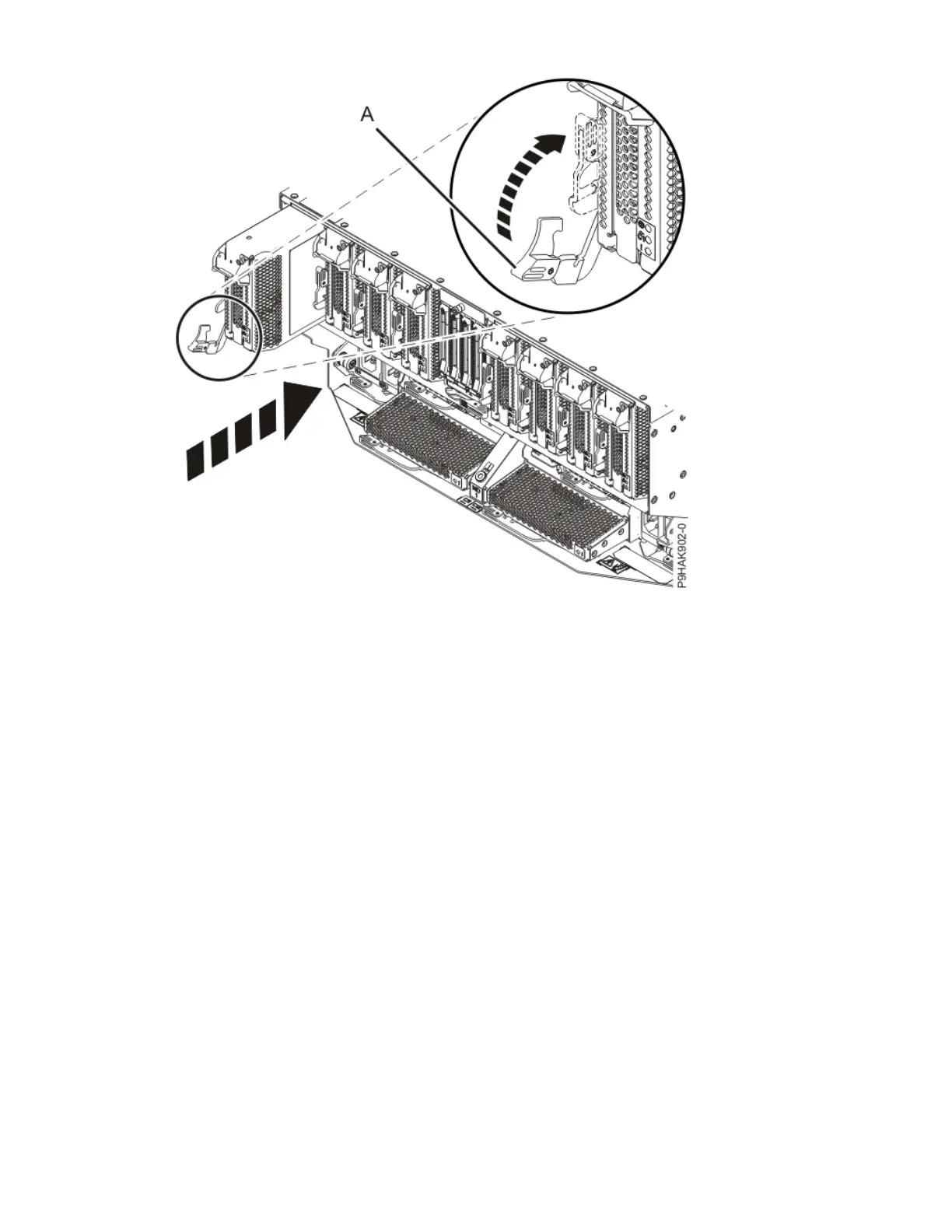

4. Put the cable management bracket in the operating position as shown in the following îš³gure.
a) Pull out the quarter-turn fasteners (B) and turn them to disengage them while moving the cable
management bracket (A) to its lower position.
b) Turn the quarter-turn fasteners (B) to engage and lock the bracket into position.
PCIe adapters
477
