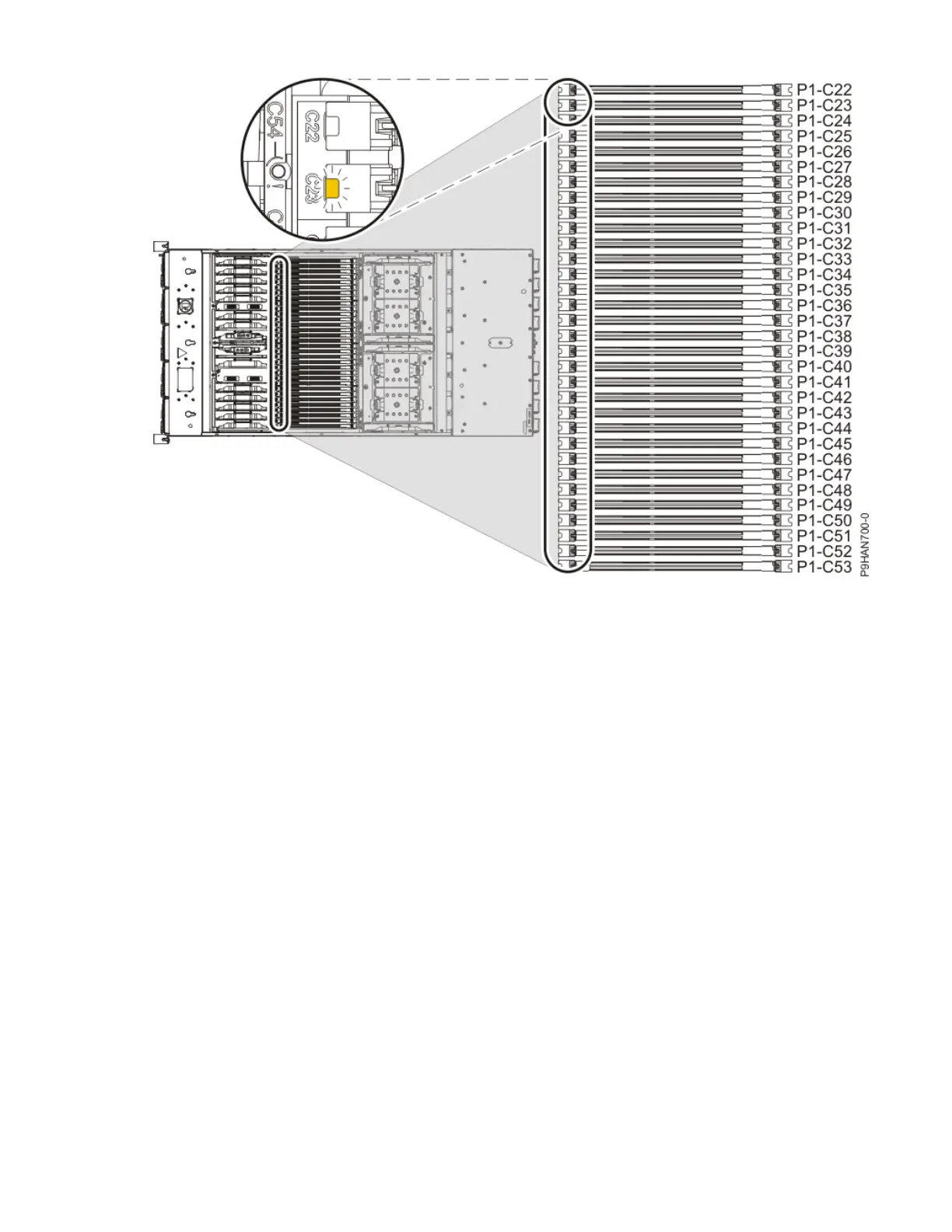

Figure 182. Memory module LEDs and locations
Permanently removing memory modules from the 9080-M9S system
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Use the slot information that you recorded to determine the slot location to remove the memory
module.
3. Remove the memory module by pushing the tabs (A) down and outward as shown in the following
îš³gure.
The lever action of the tabs forces the memory module out of the connector.
210
Power Systems: Removing and replacing parts in the 9080-M9S system
