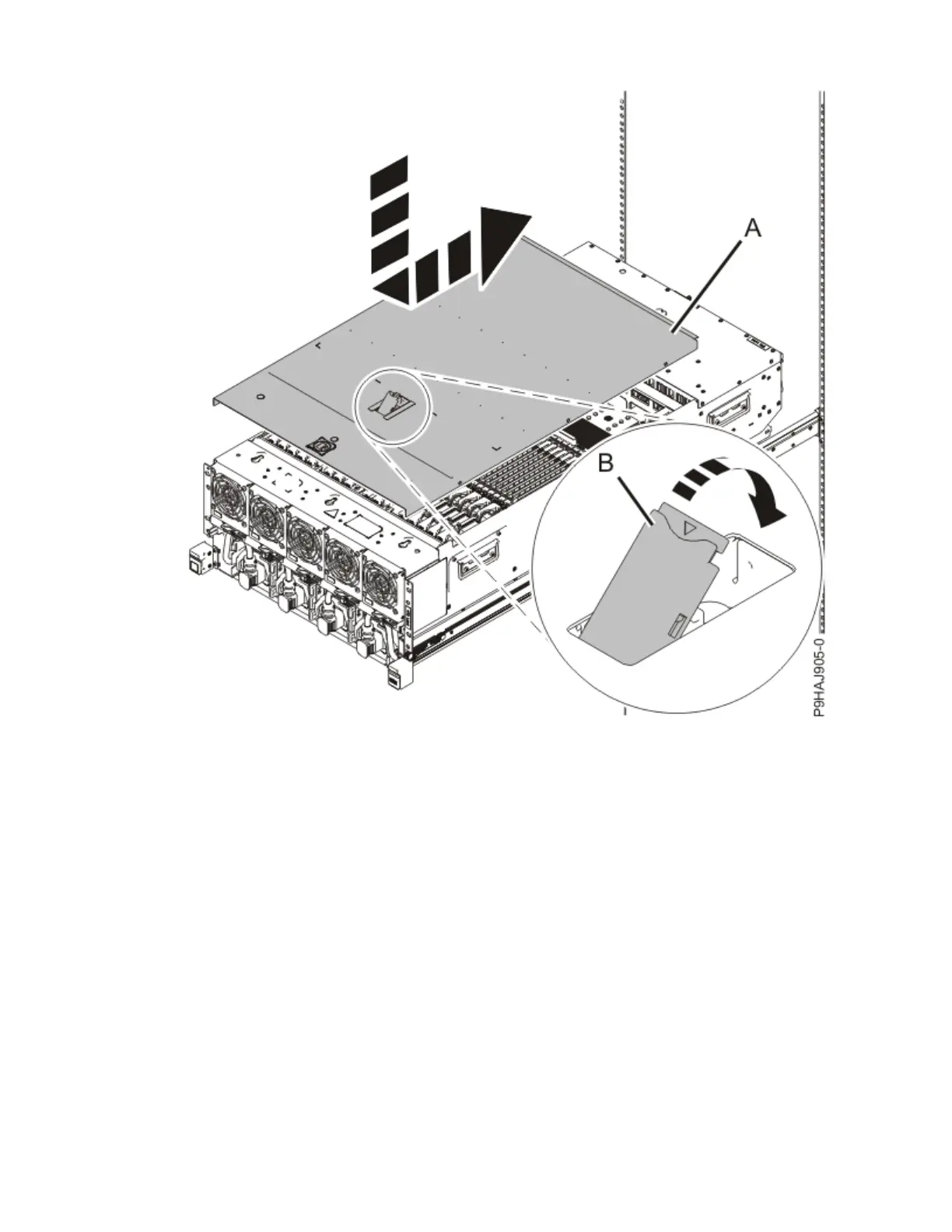

Figure 225. Installing the service access cover
3. Complete the following steps to place the system node in the operating position.
Note: Slide the system node slowly into the rack to ensure that your îš³ngers do not get caught in the
side rails.
a) Unlock the blue rail safety latches (A) by pushing them towards the front as shown in the following
îš³gure.
b) Push the system node back into the rack as shown in the following îš³gure until both system node
release latches lock into position.
260
Power Systems: Removing and replacing parts in the 9080-M9S system
