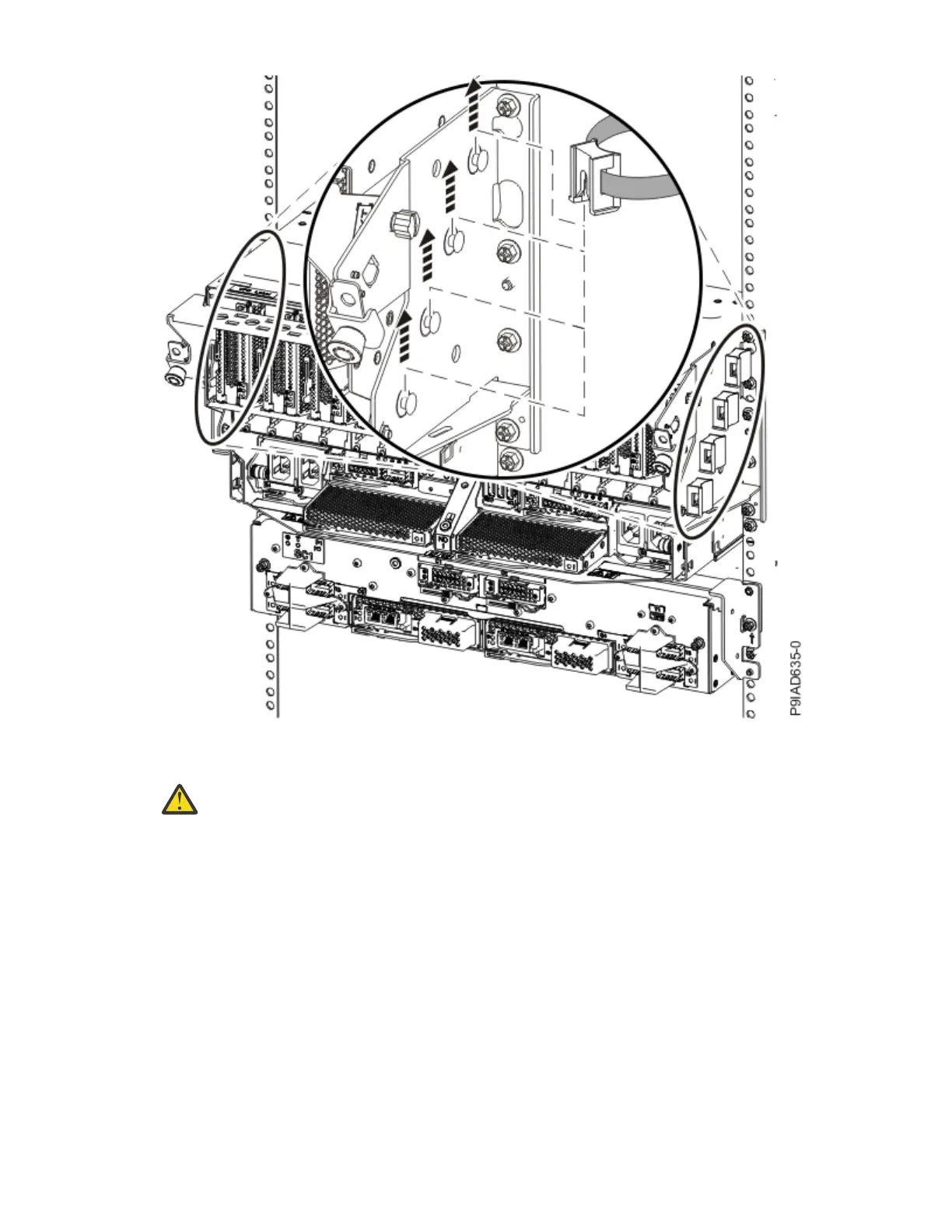

Figure 25. Removing a cable clip
9. To remove the SMP cable, complete the following steps:
Attention:
Do not drop or damage the metal connectors on the cable. If the metal connectors
are bent or damaged, they need to be replaced.
a. Slightly push in the cable bundle (A) as shown in the following îš³gure, to relieve the spring
pressure of the cable connector.
b. Pull the blue latch (B) as shown in the following îš³gure to release the inner cable latch
c. Remove the SMP cable (C) from the system node.
Cables
27
