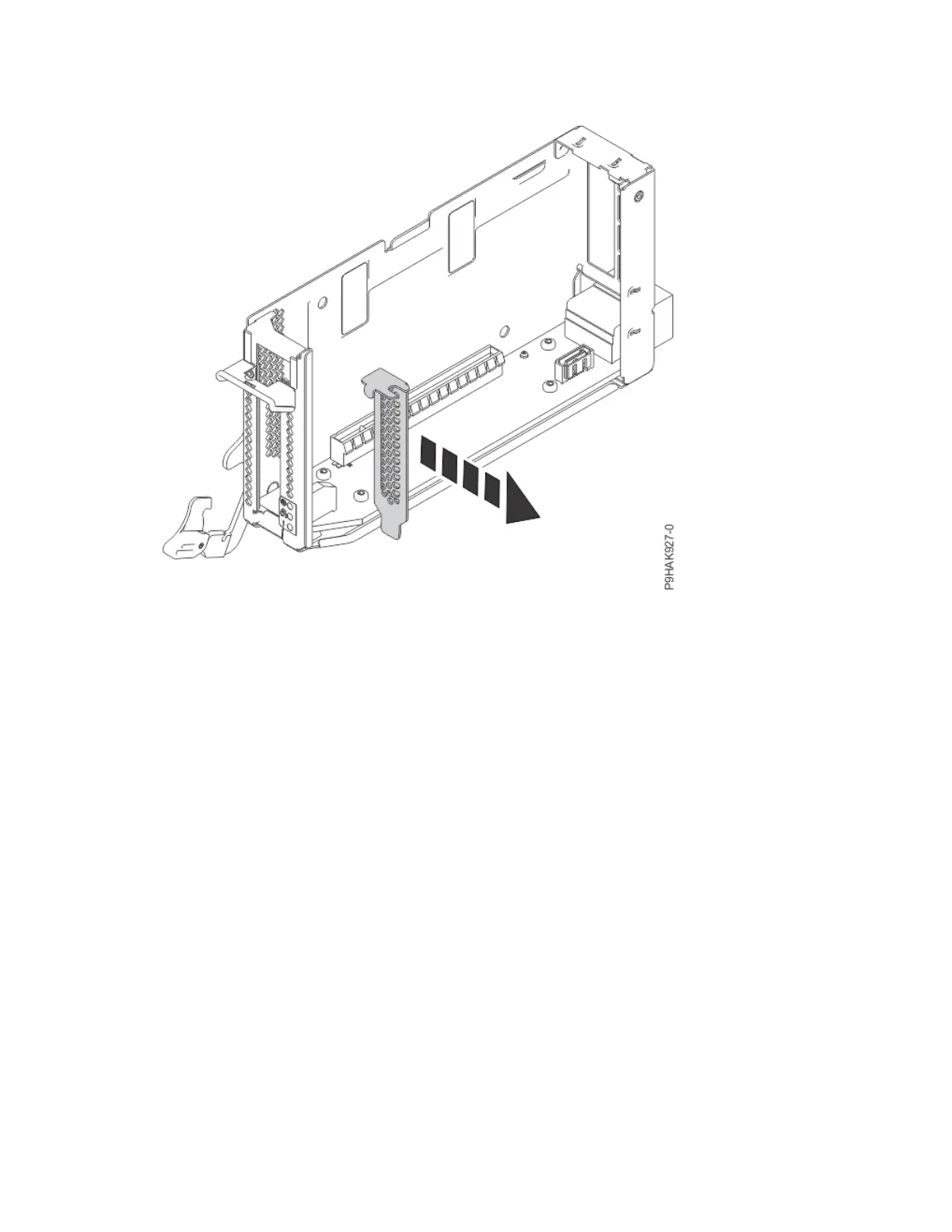

Figure 378. Removing a tailstock îš³ller from the cassette for the 9080-M9S system
8. Insert the adapter into the cassette.
a) Choose from the following options:
• If you do not have adapter retainers, continue with the next step.
• If you have adapter retainers, complete the following steps:
1) Ensure that the retainer latches (A) are in the open position by pushing up on the latch in the
direction that is shown in the following îš³gure.
2) Slide up the retainers and remove them from the cassette and then discard them.
440
Power Systems: Removing and replacing parts in the 9080-M9S system
