Table 7. USB Cabling
From To
ND1 or ND2: P1-C13-T3 SC1: P1-T1
3. Plug the USB cable into the previously identiîš³ed location in the system node by inserting the cable into
the connector, as shown in the following îš³gure.

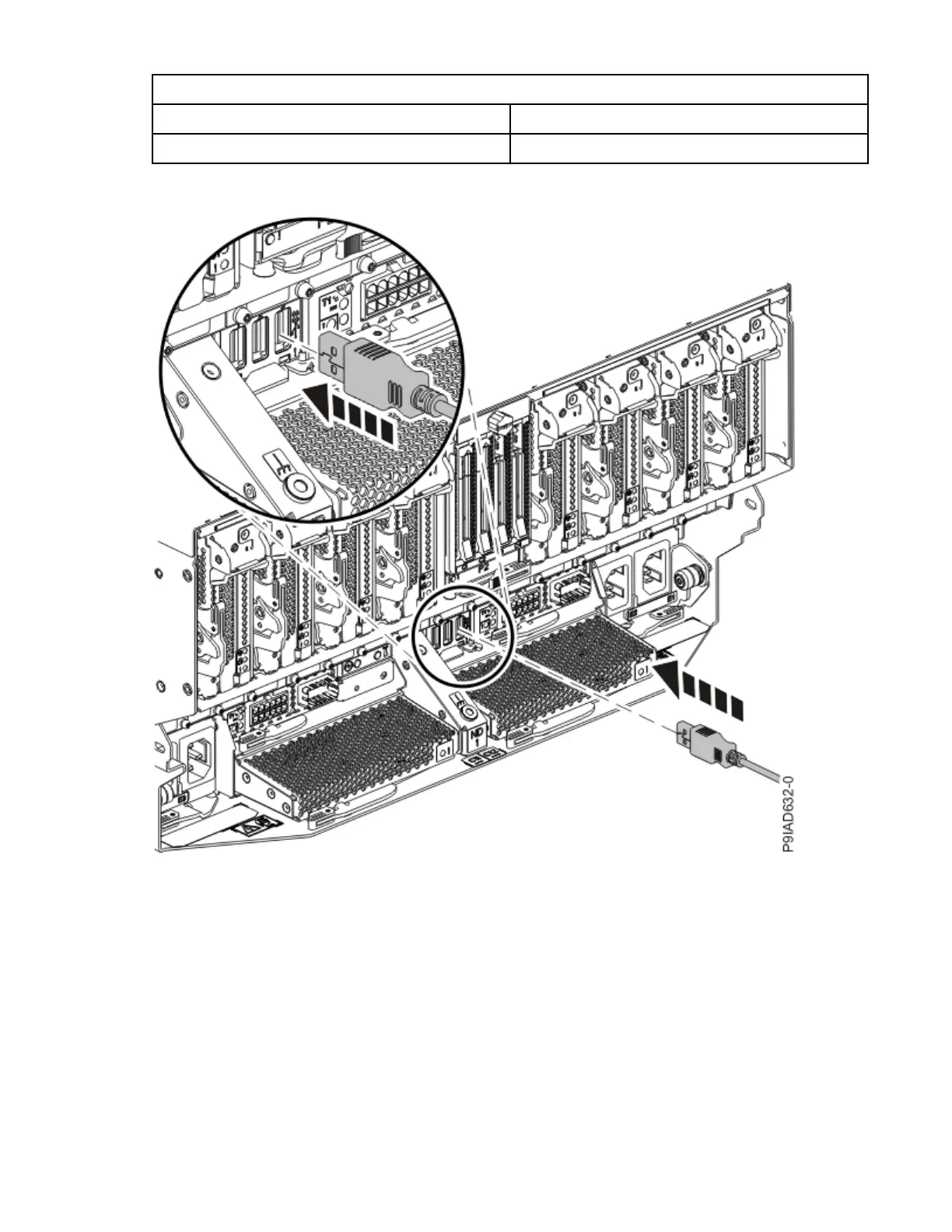

Figure 54. Replacing the USB cable into the system node
4. Plug the USB cable into the previously identiîš³ed location in the system control unit by inserting the
cable into the connector, as shown in the following îš³gure.
60
Power Systems: Removing and replacing parts in the 9080-M9S system
