One DS4800 and eight storage expansion enclosures
If you are cabling one DS4800 Storage Subsystem to eight storage expansion
enclosures of the same type, it is recommended that you evenly divide the
enclosures between the ports of two redundant dual-ported drive channel pairs,
instead of connecting in groups of up to four storage expansion enclosures behind

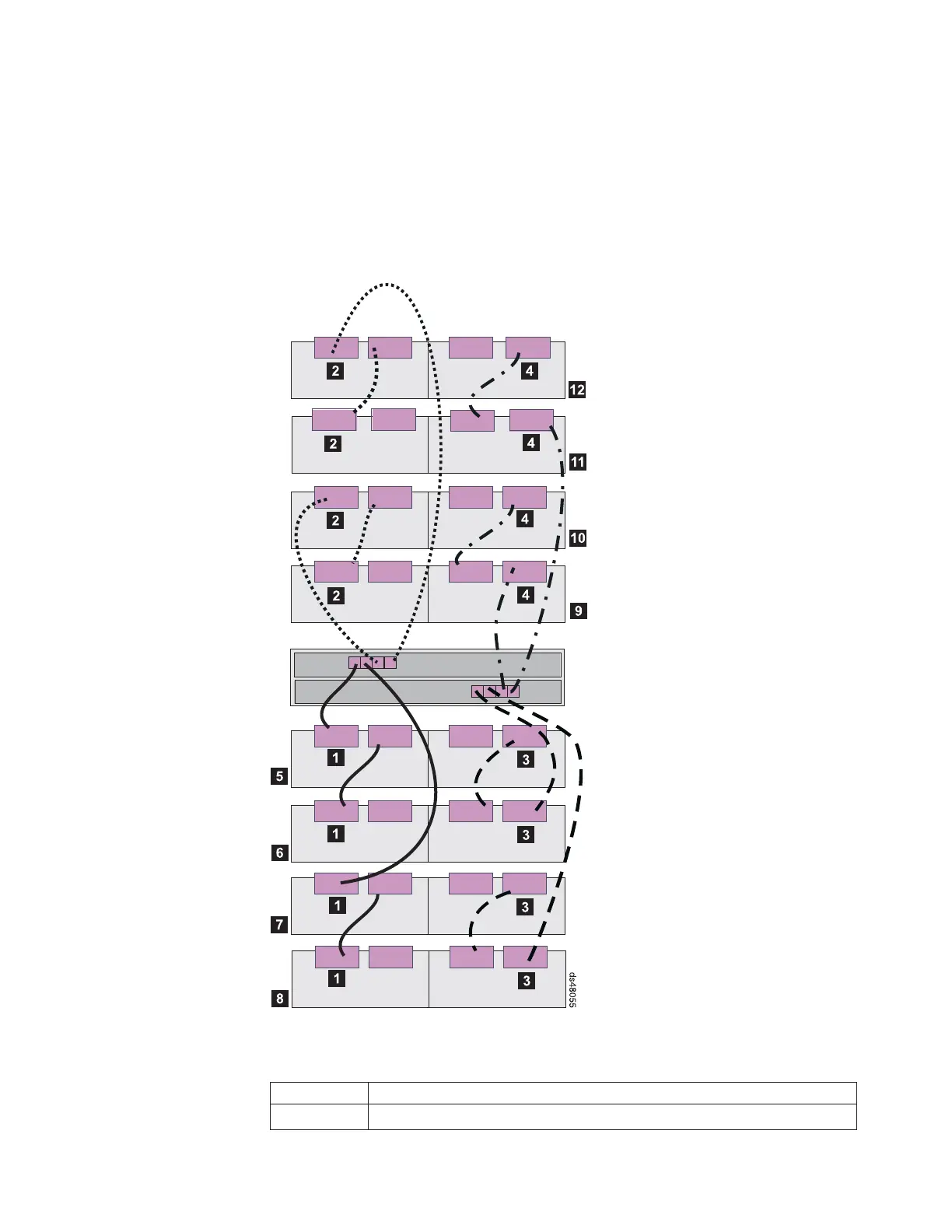

certain ports of the two redundant drive channel pairs. Figure 52 illustrates the
cabling topology for one DS4800 Storage Subsystem attached to eight storage
expansion enclosures.
Table 21. Description of Figure 52
Number Description
1 Drive channel 1
Figure 52. One DS4800 and eight storage expansion enclosures—recommended cabling
Chapter 3. Cabling the storage subsystem 75
