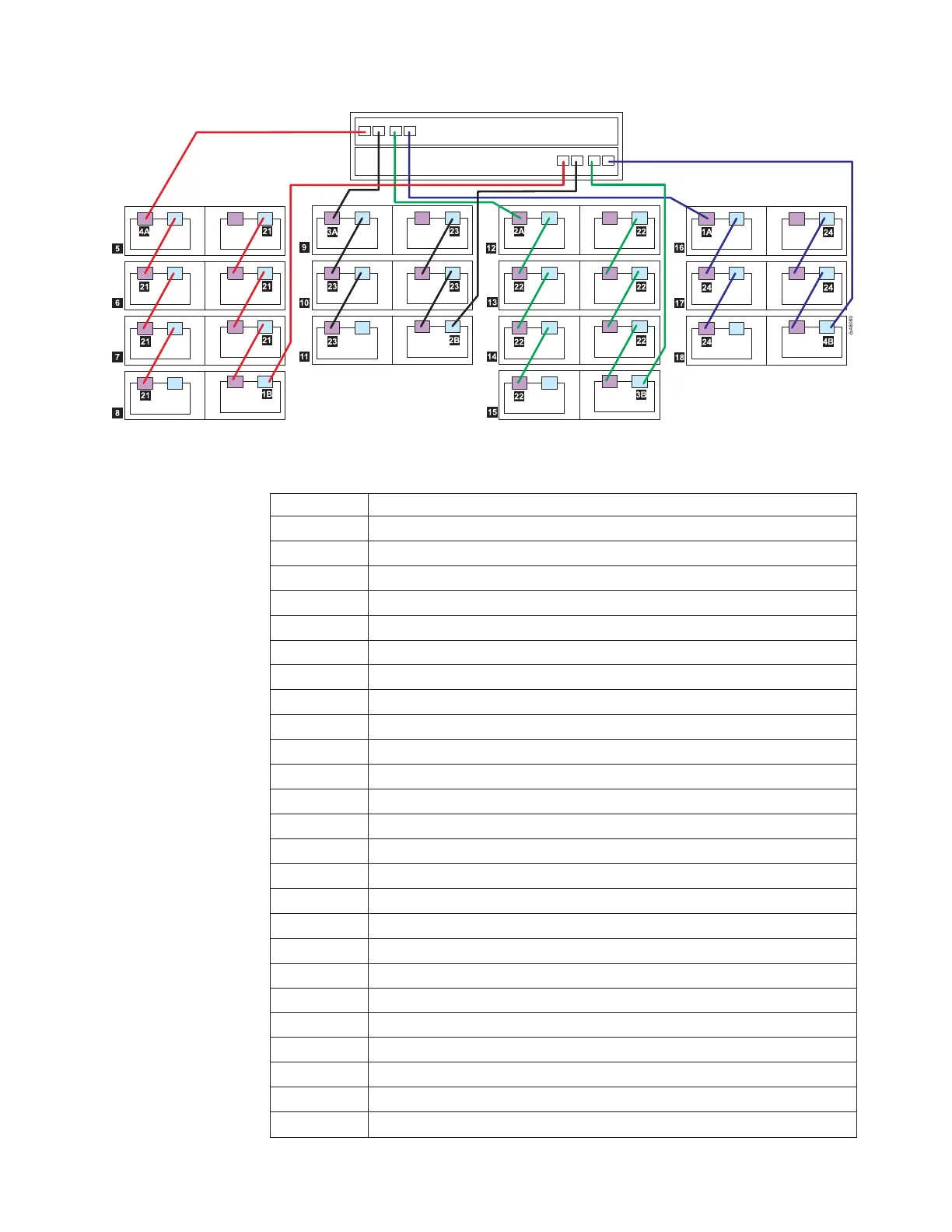

Table 22. Description of Figure 53
Number Description
4A Connection from drive port 4 controller A
1B Connection from drive port 1 controller B
3A Connection from drive port 3 controller A
2B Connection from drive port 2 controller B
2A Connection from drive port 2 controller A
3B Connection from drive port 3 controller B
1A Connection from drive port 1 controller A
4B Connection from drive port 4 controller B
21 Drive channel 1
23 Drive channel 3
22 Drive channel 2
24 Drive channel 4
5 EXP810 enclosure 1
6 EXP810 enclosure 2
7 EXP810 enclosure 3
8 EXP810 enclosure 4
9 EXP810 enclosure 5
10 EXP810 enclosure 6
11 EXP810 enclosure 7
12 EXP810 enclosure 8
13 EXP810 enclosure 9
14 EXP810 enclosure 10
15 EXP810 enclosure 11
16 EXP810 enclosure 12
17 EXP810 enclosure 13
Figure 53. One DS4800 and fourteen EXP810 storage expansion enclosures—recommended cabling
Chapter 3. Cabling the storage subsystem 77
