2. Connect the fiber-optic cable to the installed SFP, as shown in Figure 30.
3. Check the LEDs on the RAID controller. When the RAID controller is operating
properly, the amber Needs Attention LED is off. For information about the status
of the RAID controller LEDs, see “RAID controller LEDs” on page 120.
4. To remove the fiber-optic cables, gently pull the fiber-optic cable from the SFP;
then replace the protective caps.
Using LC-LC fibre-channel cables
The LC-LC fibre-channel cable is a fiber-optic cable that you use to connect
DS4800 fibre channel ports to one of the following devices:
v An SFP module installed in a fibre channel switch port
v An SFP module of the host bus adapter port
v An SFP module installed in an IBM DS4000 storage expansion enclosure
Protective cap
Fiber-optic
cable
F10ug011

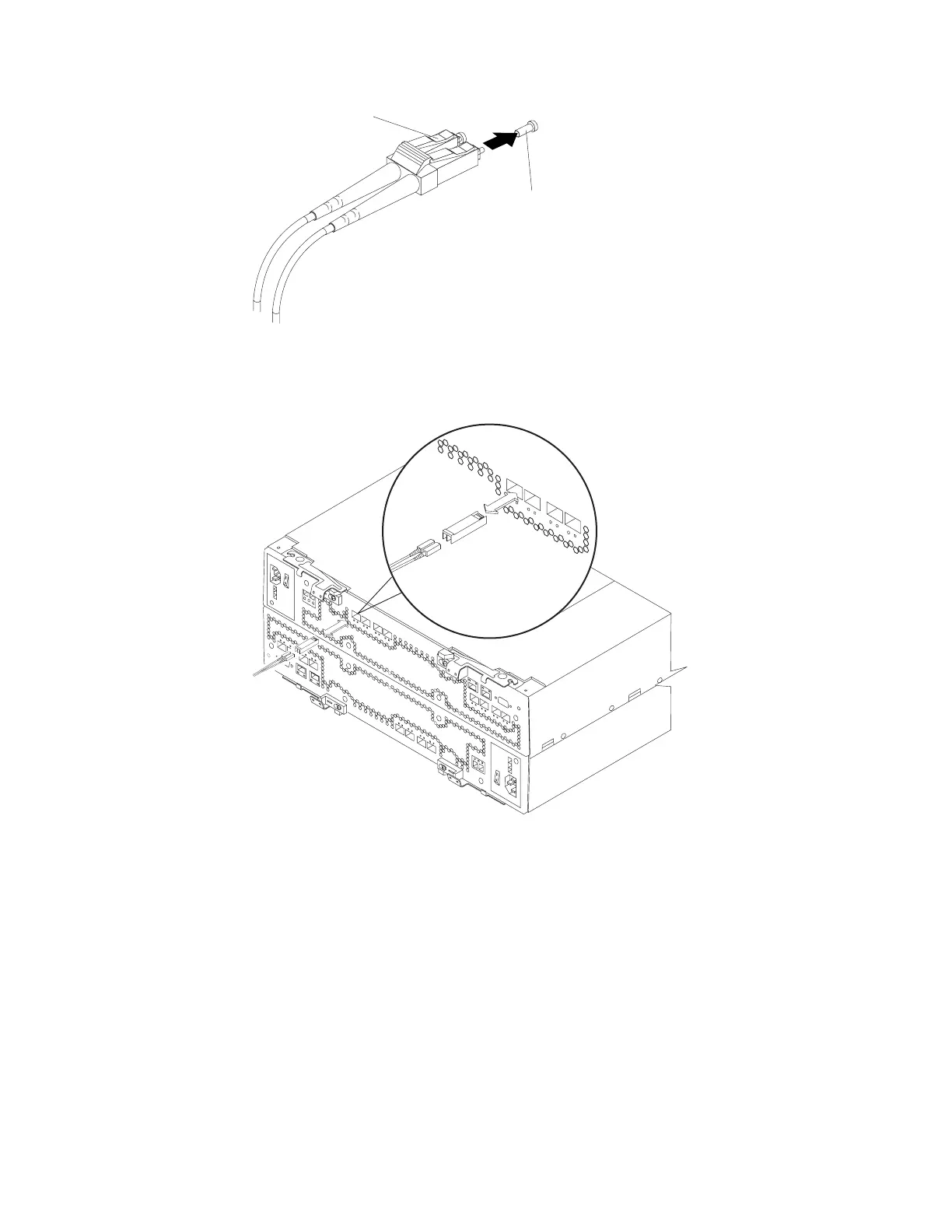

Figure 29. Removing caps from fiber-optic cables
ds48031
Figure 30. Connecting fiber-optic cable to SFP
52 IBM System Storage DS4800 Storage Subsystem: Installation, User’s, and Maintenance Guide
