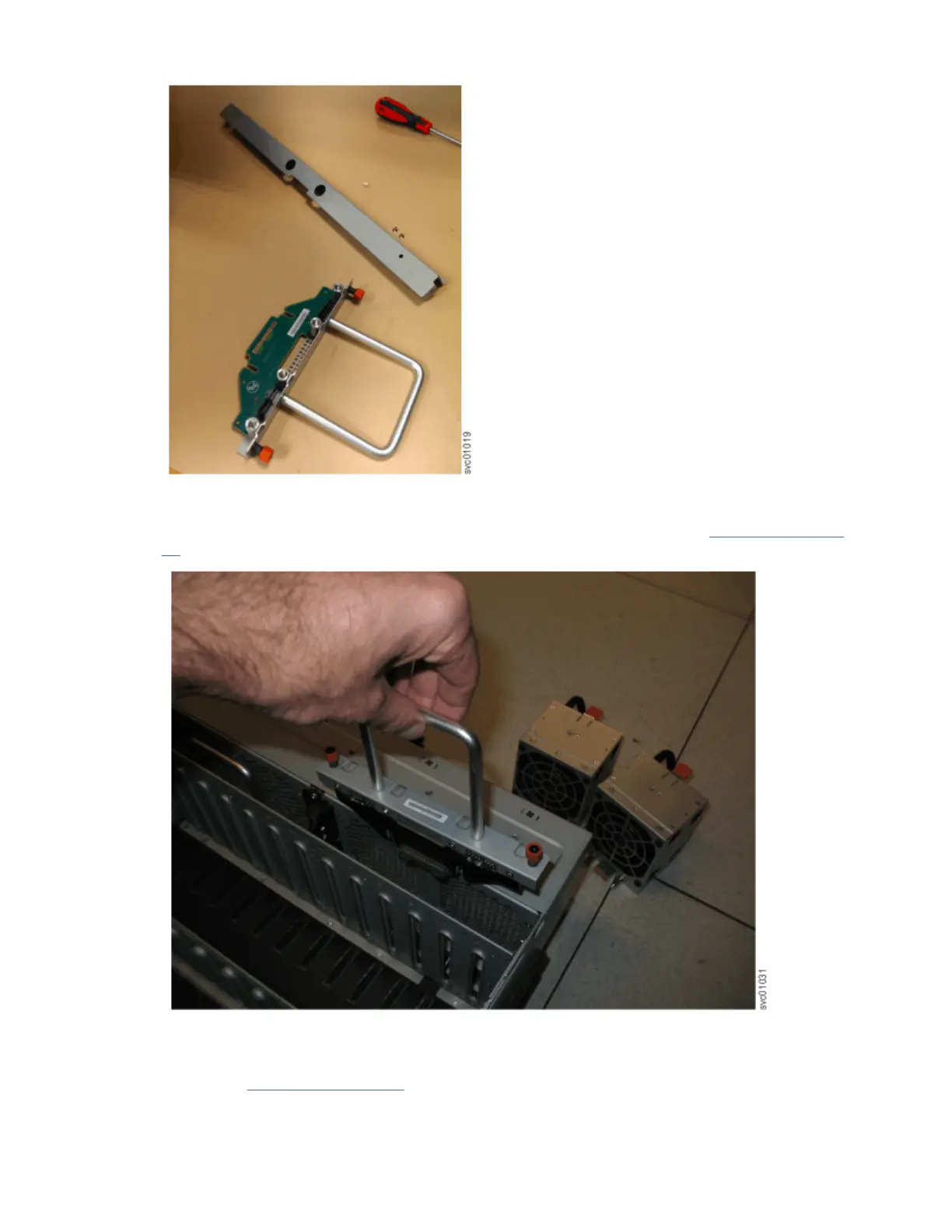

Figure 103. FIB parts for the chassis
2. Carefully insert the new FIB into the expansion enclosure chassis, as shown in Figure 104 on page
92.
Figure 104. Insert the new FIB in the chassis
3. Use a cross head screwdriver to tighten the retaining screws that secure the FIB to the drive board,
as shown in Figure 105 on page 93.
