1 Power cable connector for PSU 2
2 Power cable retention clamps
3 Fan module
4 Fan release latch
5 Fan fault indicator
6 Expansion canister
7 SAS ports and indicators
8 Expansion canister indicators
9 Power cable connector for PSU 1
Support rails
Figure 47 on page 52 shows the support rails for the expansion enclosure. The support rails are
packaged separately from the expansion enclosure.

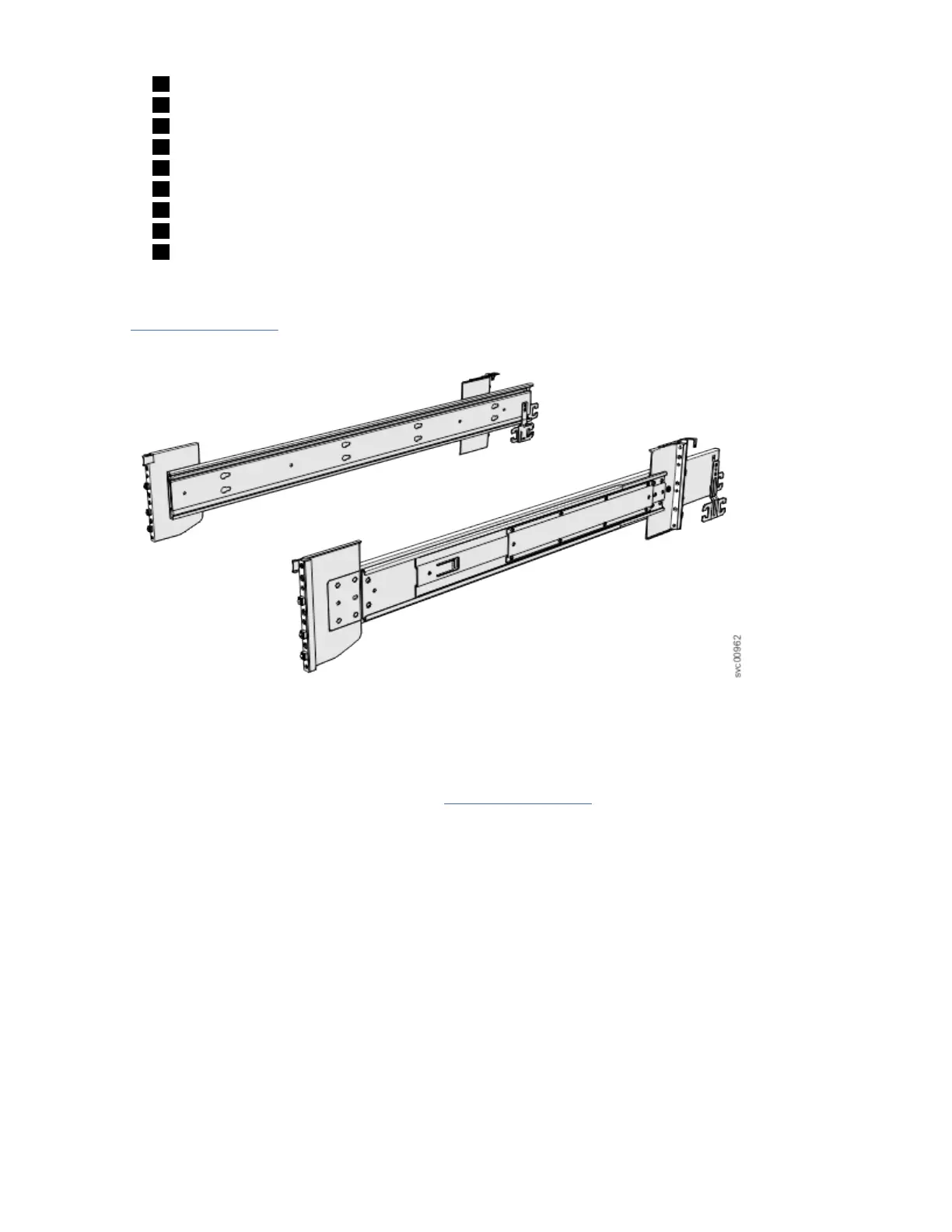

Figure 47. 2145-92F support rails
Cable management arm
The cable management arm (CMA), which consists of an upper and lower assembly, are packaged
separately from the expansion enclosure. As Figure 48 on page 53 shows, each CMA assembly is
attached to the rear end of the support rails.
52
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
