7914Cabling2-1908.fm Draft Document for Review March 28, 2011 12:24 pm

112 IBM System Storage DS3500: Introduction and Implementation Guide

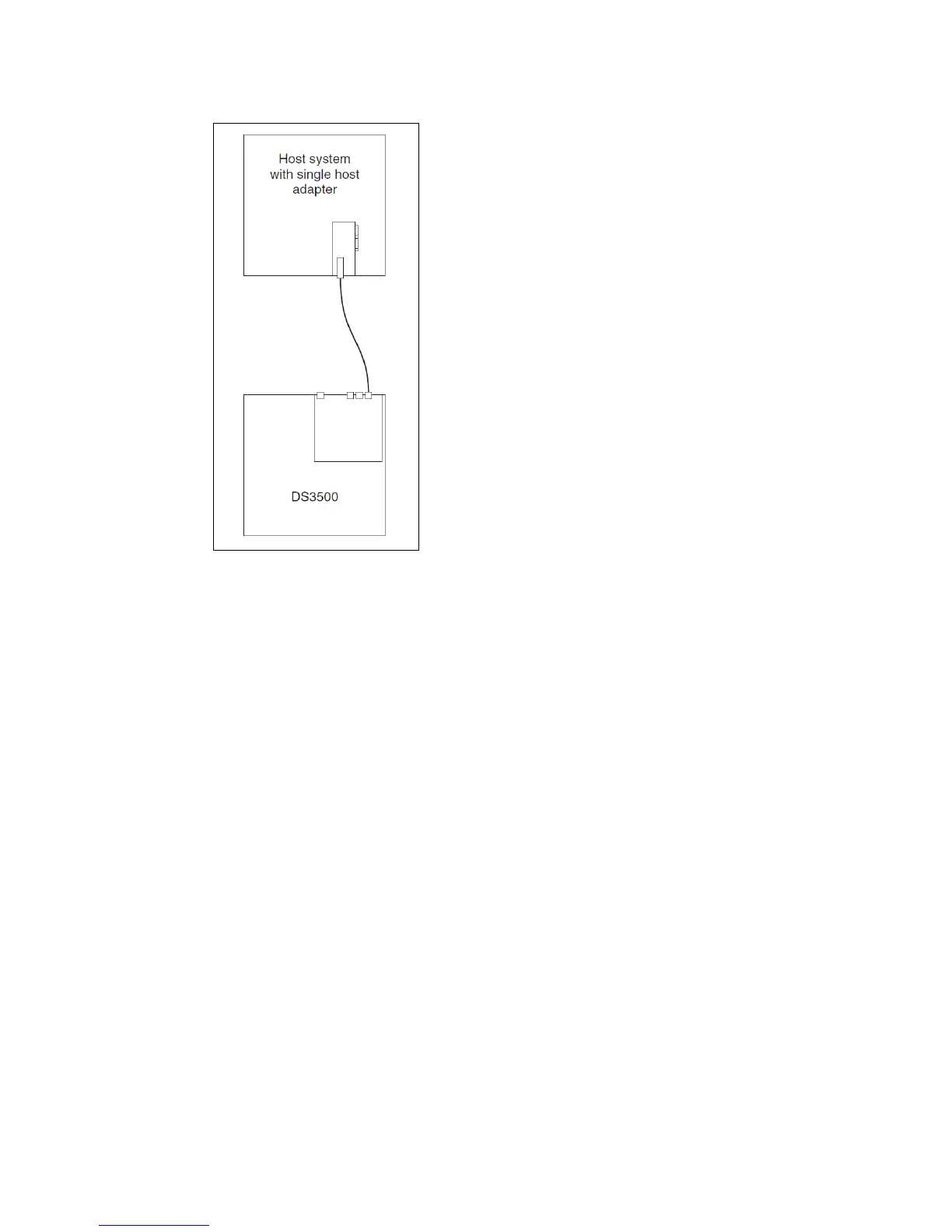

Figure 4-22 A single host with one SAS connection to the DS3500

Figure 4-23 on page 113 shows a single host with two host adapters connected to a single

controller DS3500 storage subsystem. In this example there are redundant host side

connections.
