Chapter 4. IBM System Storage DS3500 and EXP3500 Cabling 113
Draft Document for Review March 28, 2011 12:24 pm 7914Cabling2-1908.fm

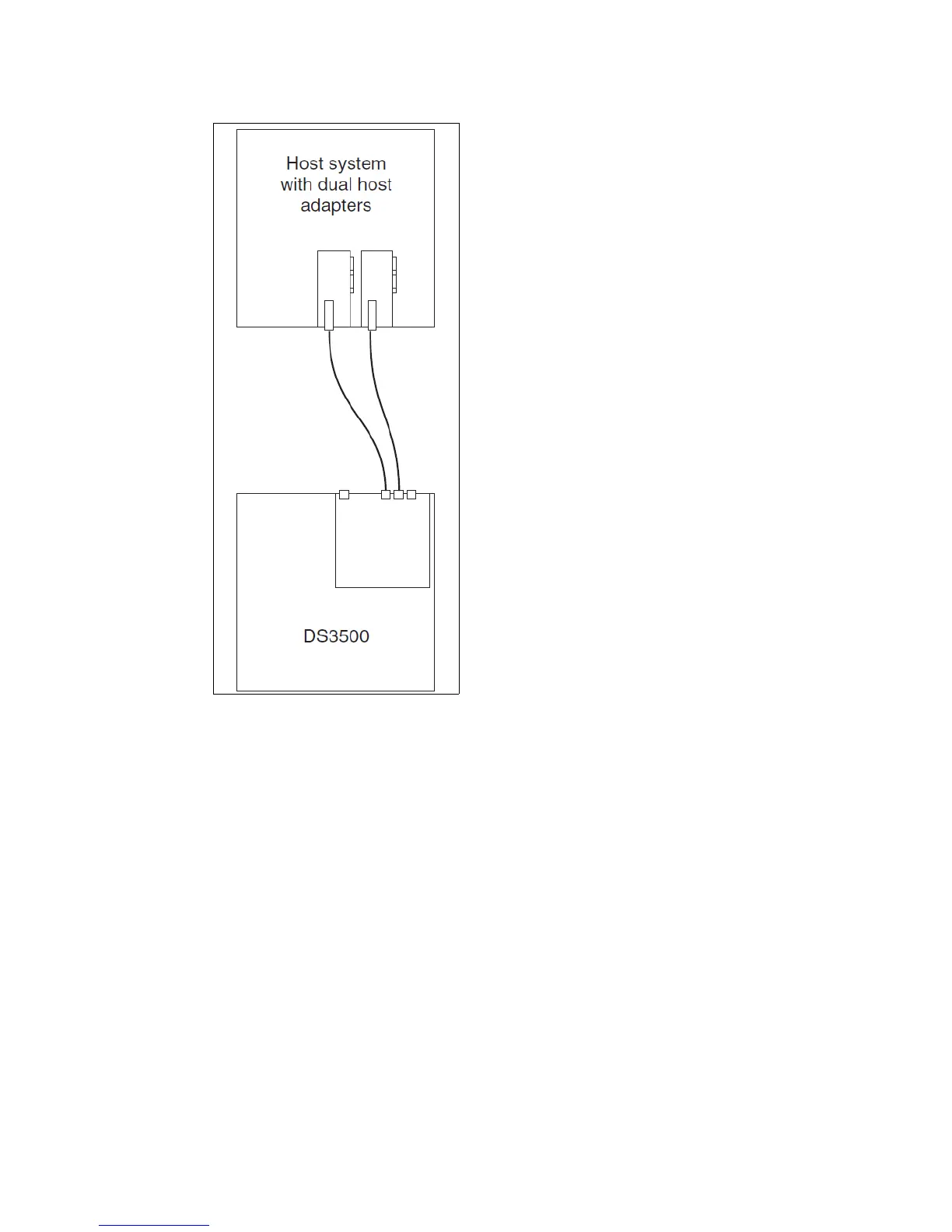

Figure 4-23 Single host with two SAS connections to a DS3500 storage subsystem
Figure 4-24 on page 114 shows a host server with two SAS host bus adapters connecting to
a dual controller DS3500 storage subsystem. This particular configuration has redundant
host side connections and redundant controllers in the DS3500 storage subsystem.
