Chapter 4. IBM System Storage DS3500 and EXP3500 Cabling 121
Draft Document for Review March 28, 2011 12:24 pm 7914Cabling2-1908.fm

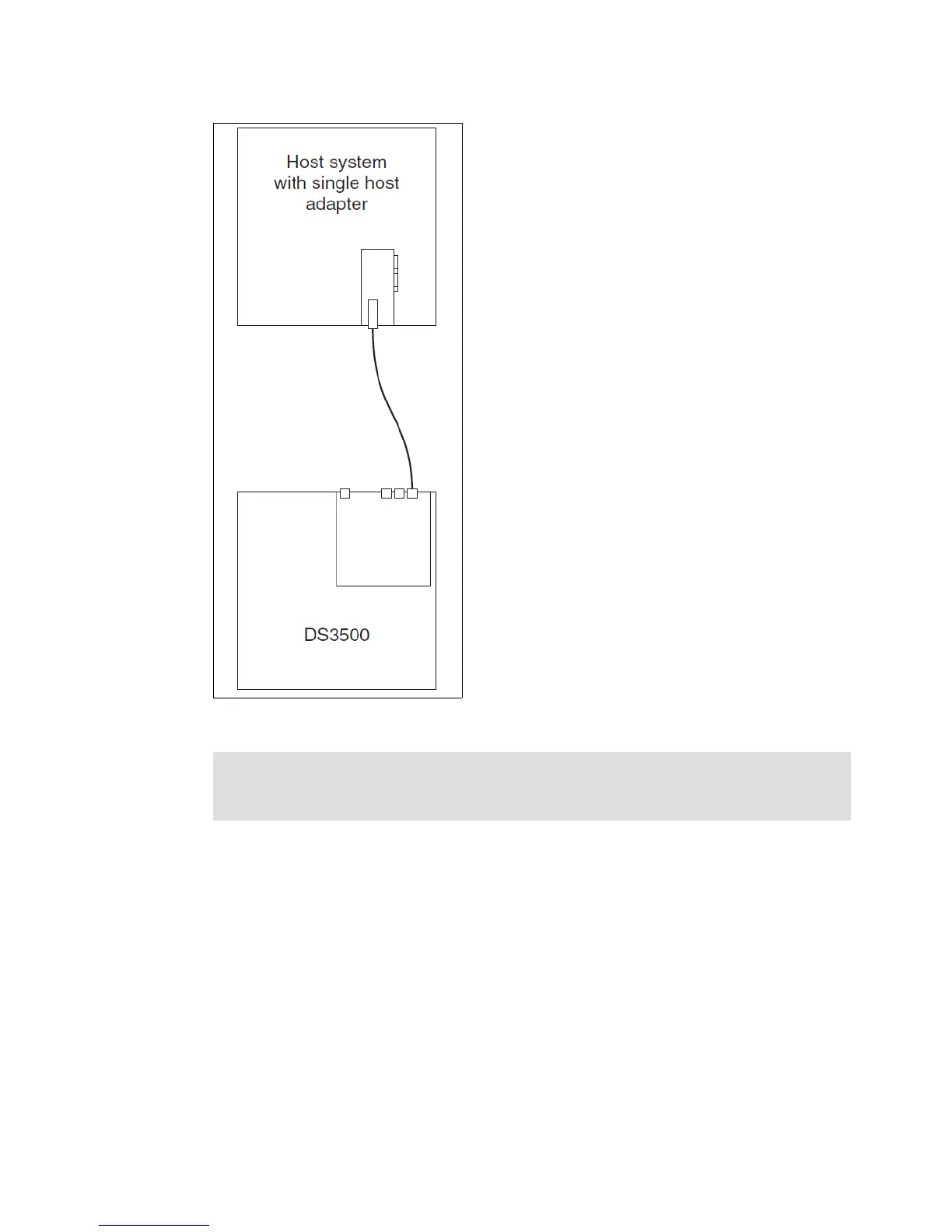

Figure 4-31 Single direct-attached host server
Figure 4-32 on page 122 shows a single host server with two host bus adapters and
redundant paths to a single controller DS3500.
Best Practise: Although this particular configuration is a valid supported configuration, it
does not have redundant host connections. Best practise is to always use redundant host
connections as shown in Figure 4-32 on page 122.
