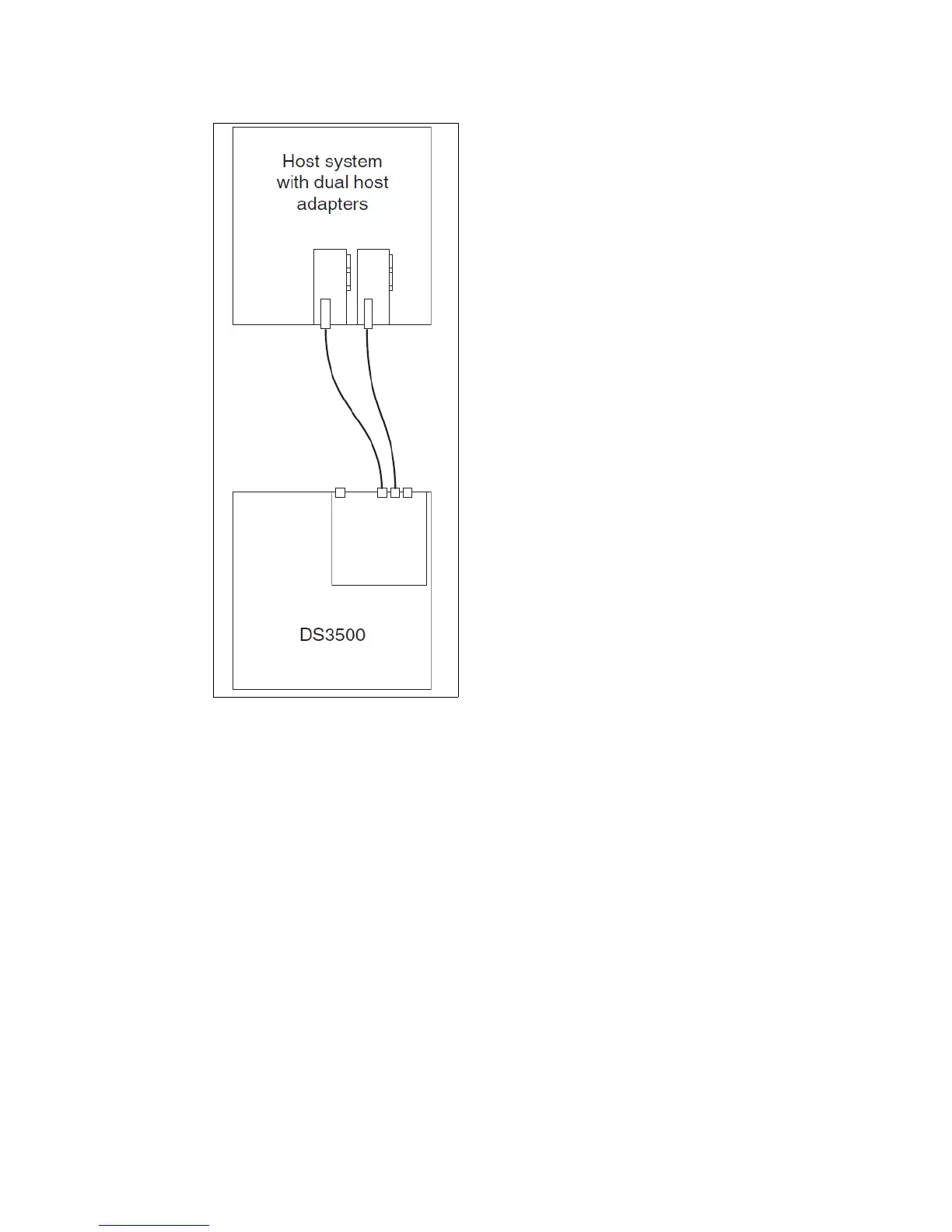

Figure 4-32 Direct attached host with redundant paths
Although the sample configuration shown in Figure 4-32 has redundant paths to the single
controller, the controller is the single point of failure.
Figure 4-33 on page 123 shows a configuration with one host and redundant paths to a dual
controller DS3500. This configuration offers both redundant Fibre Channel host connections
and redundant controllers and offers improved redundancy compared to the sample
configuration shown in Figure 4-32.
