Chapter 4. IBM System Storage DS3500 and EXP3500 Cabling 123
Draft Document for Review March 28, 2011 12:24 pm 7914Cabling2-1908.fm

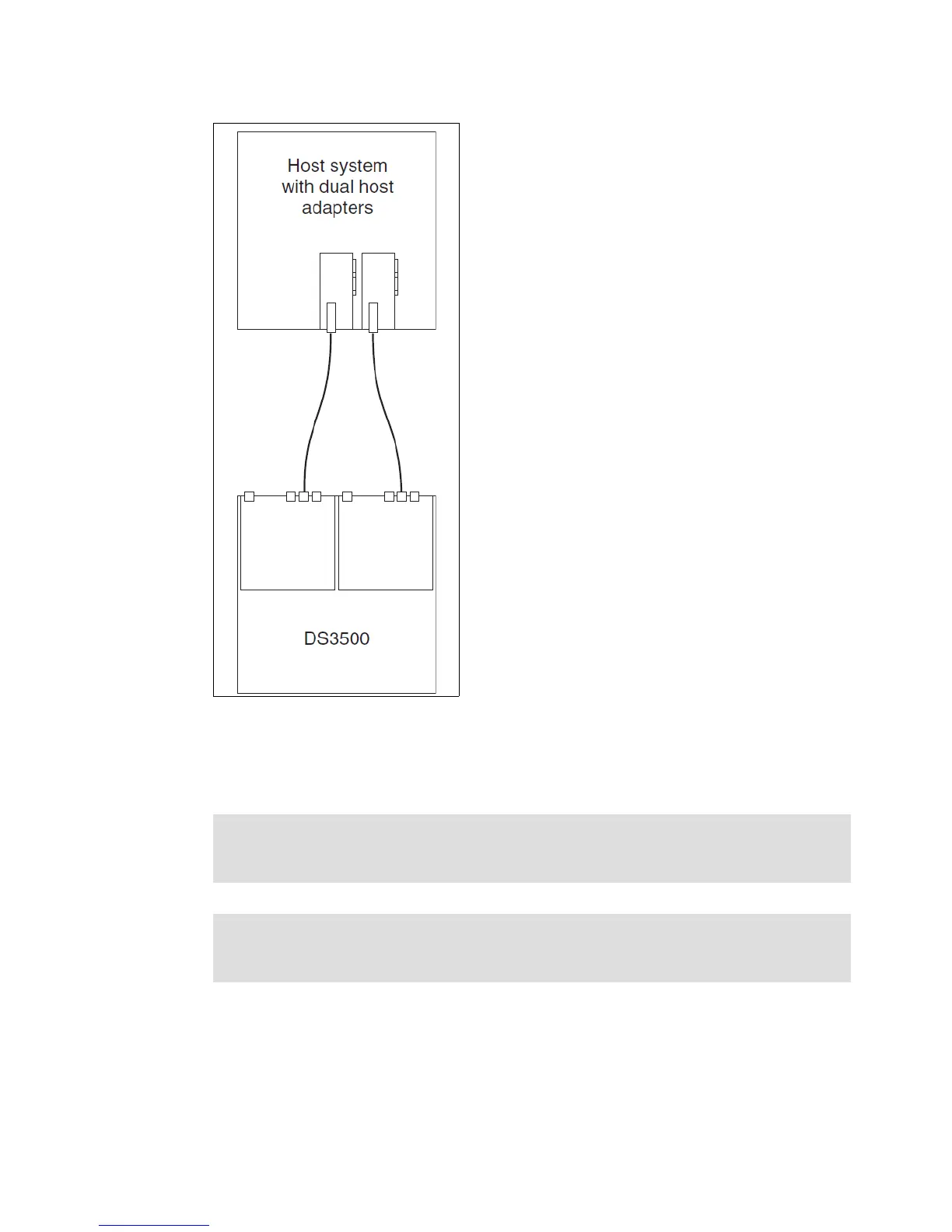

Figure 4-33 Direct attached host with redundant host connections and controllers
Figure 4-34 on page 124 is an example of a configuration with two direct-attached host
servers with non-redundant connections to a DS3500 storage subsystem. This sample
configuration does not have either redundant host connections or redundant controllers.
Note: Although the example shown in Figure 4-34 on page 124 is a valid supported
configuration, it does not have redundant host-side connections. Best practise is to always
use redundant host-side connections.
Note: Because there are four Fibre Channel host ports on the DS3500 (when the optional
Fibre Channel host interface card is installed) a maximum of two direct attached hosts with
redundant paths can be connected to a single controller DS3500 storage subsystem.
