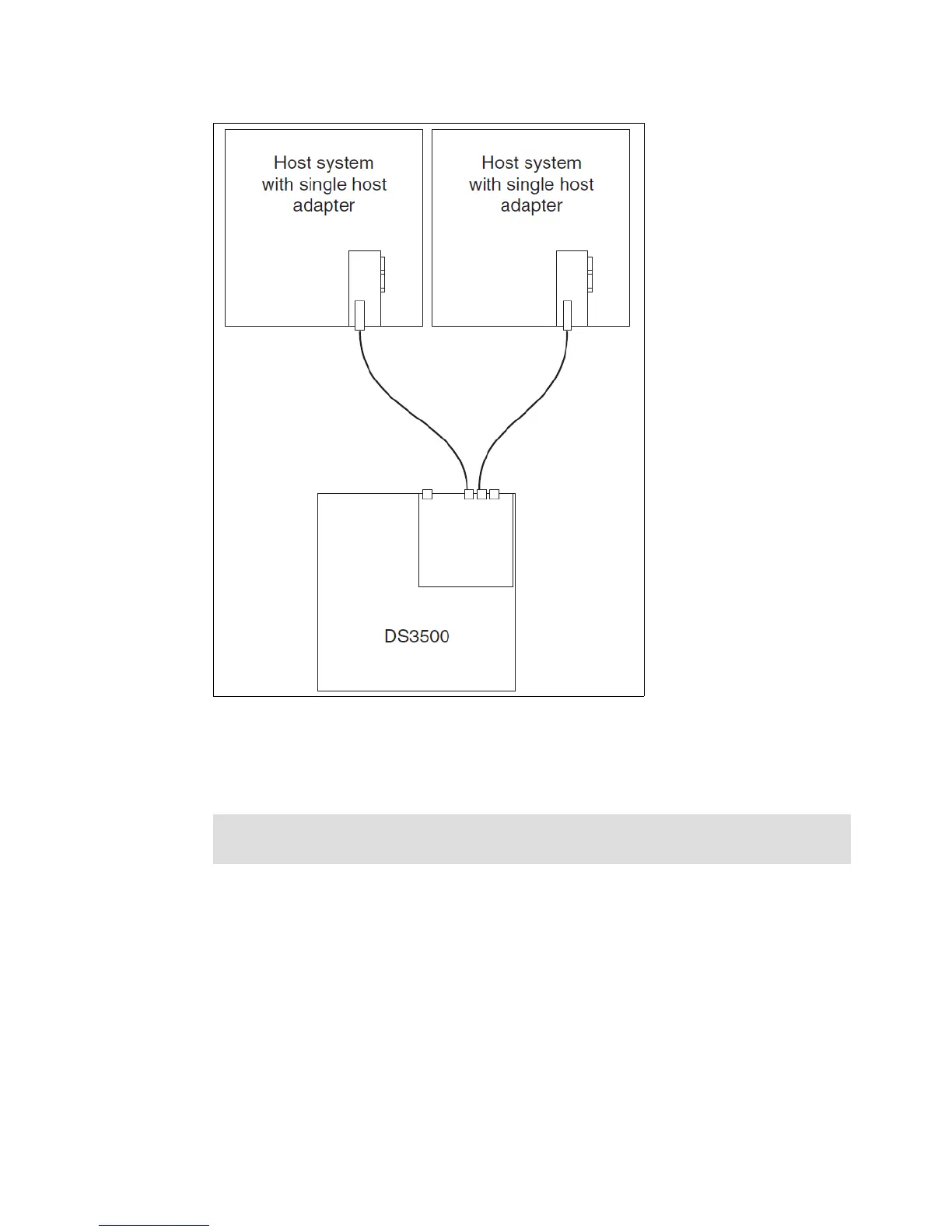

Figure 4-34 Two host serves with non-redundant Fibre Channel connections
The sample configuration shown in Figure 4-35 on page 125 has two direct-attached host
servers with redundant connections to a dual controller DS3500. This particular configuration
has both redundant host-side connections and redundant controllers.
Note: A maximum of four direct-attached host servers with redundant Fibre Channel
connections can be connected to a dual controller DS3500 storage subsystem.
