Chapter 5. Installing IBM System Storage DS Storage Manager 157
Draft Document for Review March 28, 2011 12:24 pm 7914InstallSM01108.fm
3. Select a management method and add the Storage Subsystem as described below:
– When using the Out-of-band management, select the Out-of-band management button
as enter the IP addresses of both the controllers as shown in Figure 5-27

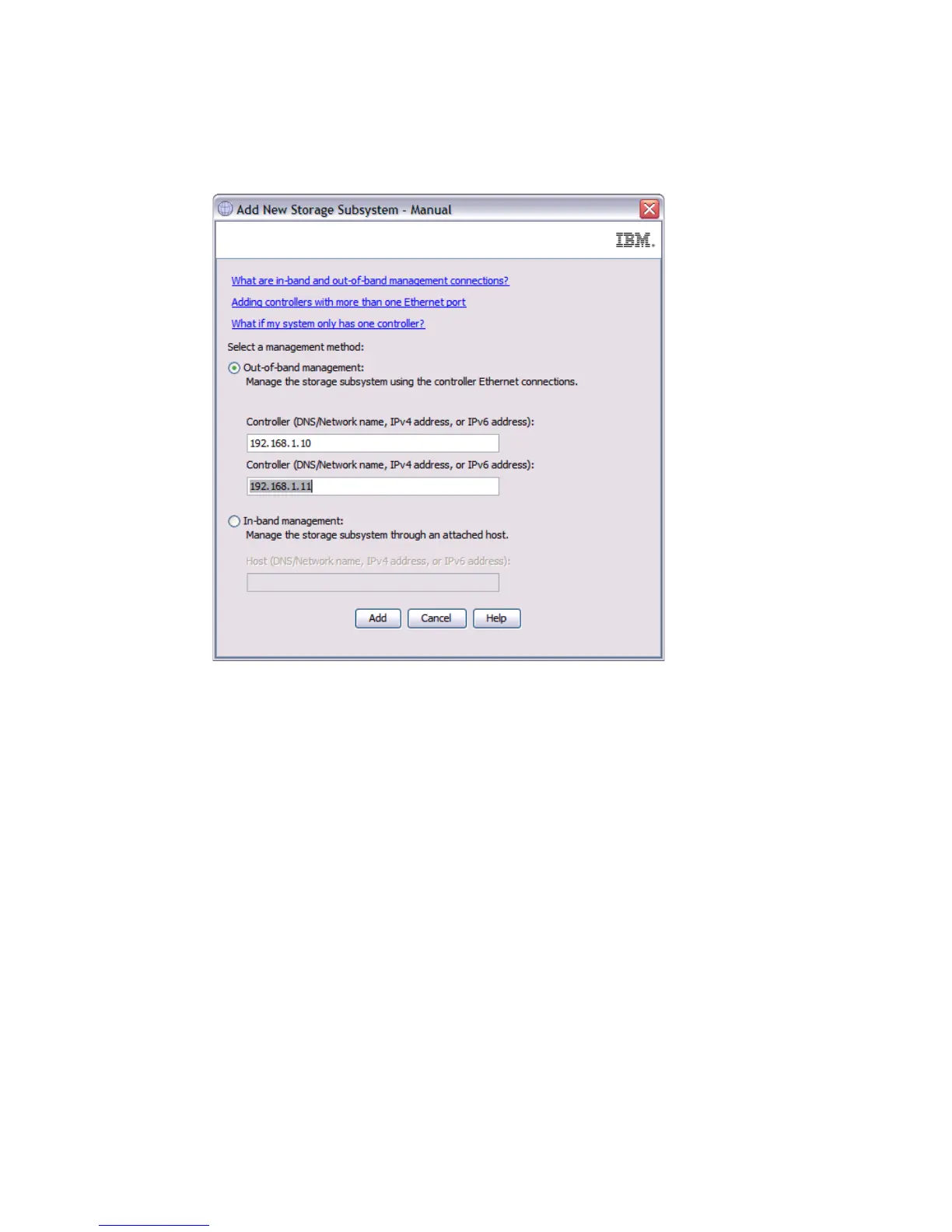

Figure 5-27 Out-of-band management
– For In-band management, select the option and enter the IP address of attached host
as shown in Figure 5-28 on page 158.
