7914Admin_Logical.fm Draft Document for Review March 28, 2011 12:24 pm
240 IBM System Storage DS3500: Introduction and Implementation Guide

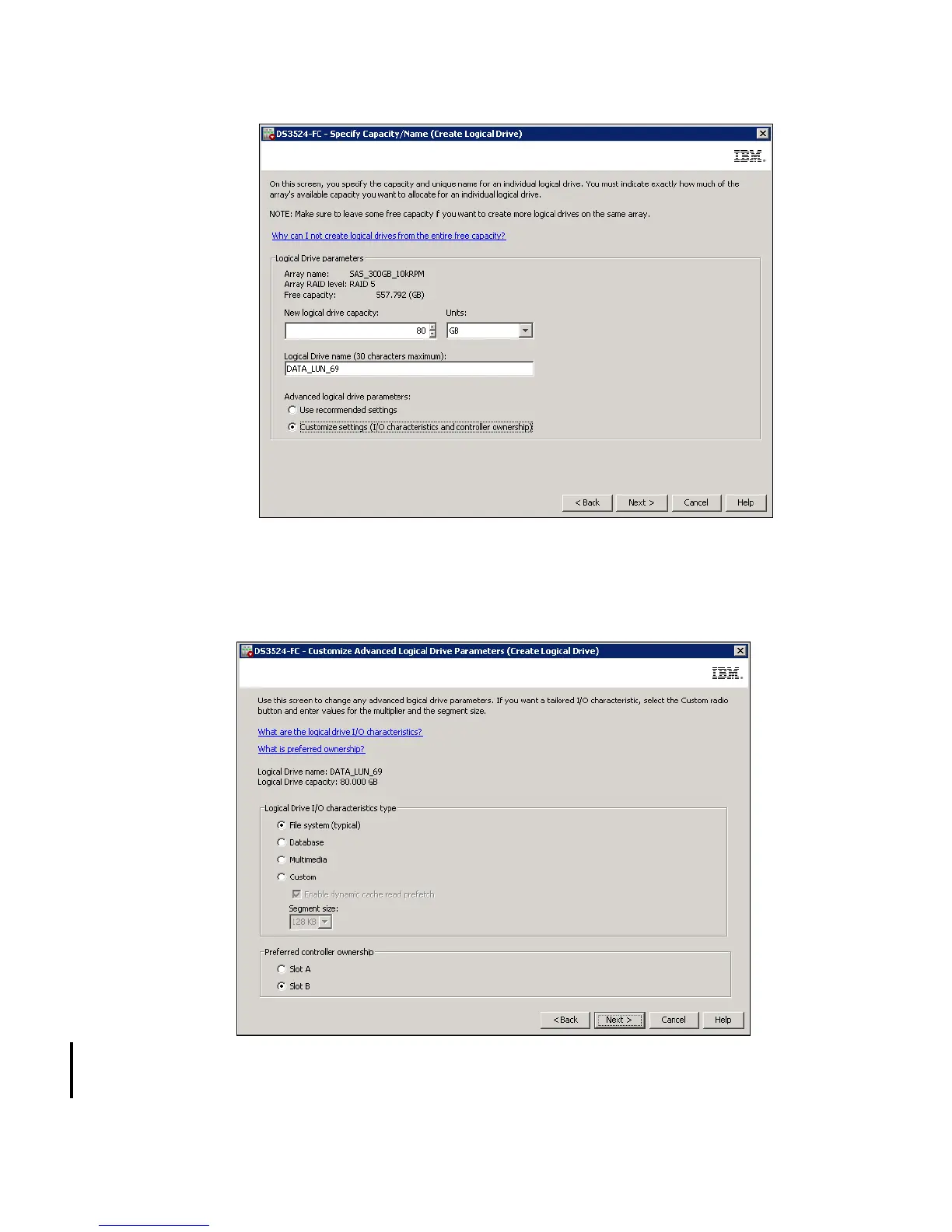

Figure 9-18 Specifying Logical Drive capacity and name
4. The Customize Advanced Logical Drive Parameters window opens (Figure 9-19). You can
set your new logical drive using any of the predefined I/O types listed, or manually set the
cache read ahead multiplier, segment size, and controller ownership.
Figure 9-19 Customize logical drive parameters
a. For logical drive I/O characteristics, you can specify file system, database, or
multimedia defaults. The Custom option allows you to disable or enable the dynamic
